Factory Price Waste Films Woven Bags Bottles Drums Tanks Barrels Plastic Pipes Recycling Washing Machine

Product Description

Applicable Material:
Suitable for a diverse range of materials including PE/PP films, industrial films, city garbage film, PP woven bags, and raffia jumbo bags.
Introduction

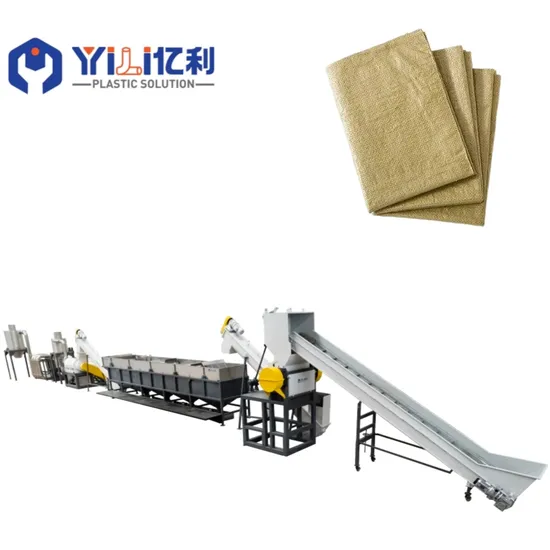

The waste plastic film recycling and washing line crafted by YILI Machinery is capable of treating a wide array of plastic soft materials, such as PE or PP plastic film, PP woven bags, and waste agricultural films. Additionally, it effectively handles waste soft drip irrigation pipes, industrial packing films, supermarket packing films, etc. The comprehensive production line encompasses a shredder, crusher, friction washer, floating tank, squeezer, etc., boasting a capacity range from 300 to 1500 kg/hr. Our film washing line guarantees precise and efficient decontamination of waste films through both cold and hot washing systems, utilizing the most advanced recycling technologies. The final products post-washing achieve exceptional quality, suitable for standalone use or blending with other materials for reprocessing, even in innovative new film blowing applications.
Technical Parameters

Model	Capacity (kg/hr)	Power installed (Kw)	Water consumption (ton/hr)	Manpower
QX300	300-400	160	0.5	3
QX500	500-600	200	1.2	3
QX1000	800-1000	250	3	4
QX1500	1300-1500	325	4	4
QX2000	1800-2000	415	4	4

Tech Features & Advantages The entire production line features automatic control, a streamlined process, exceptional production efficiency, and impressive cleanliness; This system efficiently separates mud, sand, and other impurities from films and bags with ease; Equipped with a pre-treatment system including Pre-washer and label processing, it has the capability to significantly enhance the quality of the final product; Offers cutting-edge centrifugal dewatering and squeezing technology; Designed for easy maintenance, low energy consumption, and extended longevity.
Main Machines For the line
Belt conveyor

Available in both light and heavy-duty variations, our belt conveyors utilize a gearbox motor and are equipped with side walls to prevent material spillage. They offer the option for installing a metal detector, enhancing operational efficiency.
Shredder Ideal for processing large raw materials such as plastic drums, tanks, lumps, and die head materials, the shredder performs preliminary grinding followed by secondary crushing for thorough refinement. Final material sizes below 12mm ensure superior cleaning. YILI offers a series of shredders varying in capacity and functionality to cater to customer needs.
Crusher
The crusher reduces material to smaller sizes while simultaneously cleaning and cooling the blades with water. By breaking down large materials into smaller pieces, it enhances washing results and facilitates convenient packaging of the final product.
Frication Washer Engineered for high-speed washing, the friction washer efficiently removes contaminants, dirt, and grease from materials. Following the friction washer, materials proceed to the floating tank for further purification.
Floating tank
This module effectively separates sediment and metal from materials, utilizing washing wheels designed for optimal functionality and speed, managed via inverter control. Equipped with a magnetic valve at the bottom for timely dirt discharge, constructed from stainless steel.
Centrifugal Dryer The horizontal centrifugal dryer delivers exceptional drying of plastic flakes with high efficiency and minimal energy use. The self-cleaning grid mesh operates on a timer, providing dual washing and drying functions.
Hot air pipeline heating
Featuring a stainless steel construction, the pipeline supplies hot air to further dry materials, effectively reducing moisture content.

---
