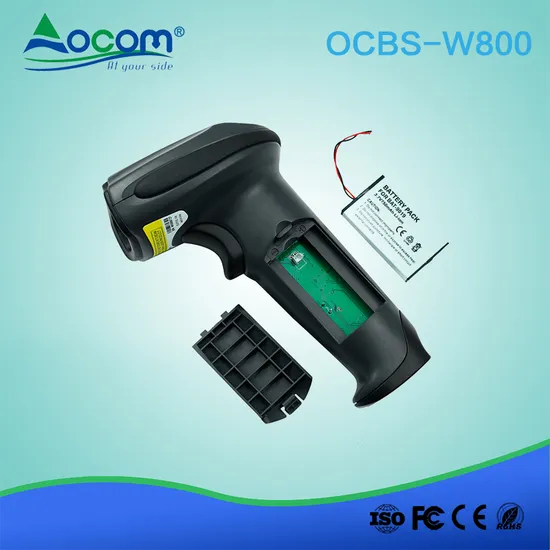

Barcode Scanner Portable Pos Laser 1D Mobile Bluetooth
Integrated non-volatile memory 32bit decoder ensuring excellent decoding ability Data transmission distance reaches 200m in open area One receiver can works with 30 scanners Receiver is intergrated with charger Intelligent battery management system,real-time check remaining battery
| General | |
| Model | OCBS-W800 |
| Material | ABS+TPR /Aluminium alloy |
| Working Frequency | 433MHz |
| Communication Interface | USB |
| Memory | 16MB |
| Battery | 3.7V/750mAh,Li-ion |
| Charge Time | 3.0 Hours |
| Working Time | 8 Hours |
| Current | 95mA (working); 25mA(standby) |
| Scanning Mode | Hand-held; Continuous Scanning Mode |
| Indicator Light | LED Red and Blue |
| Buzzer | Buzzer Volume Adjustable |
| Drop Specification | Withstands repeated 1.5m drops to concrete surface |
| Electrostatic Discharge | Conforms to ±12KV air discharge and ±6KV of contact discharge |
| Safety Certificate | CE, FCC, Class 2, RoHS |
| Performance | |
| Light Source | Visible Laser Diode (VLD) @ 650 nm |
| Communication Distance | 200m(Open Places) |
| Scan Speed | 200 scans/sec |
| Scan Precision | 0.10-0.825mm |
| Bit Error Rate | 1/(5million) |
| Ambient Illumination | 0~100,000 LUX |
| Angles | Pitch:60°; Tilt: 45° |
| Decoding ability | UPC/EAN, UPC/EAN with Supplementals, UCC/EAN128, Code39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5, MSI/Plessey, UK/Plessey, UCC/EAN 128, Chinese Code, GS1 DataBar (RSS) series |
| Depth of Scan Field | 10-450mm(Contrast 0.9 Density 0.25) |
| Width of Scan Field | 60mm@30mm(From engine face)
98mm@100mm(from engine face) |
| Physical | |
| Weight | Gross:860g |
Package
| 230*170*90mm |
20 in 1 carton
| 470*360*450mm/11.1kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
