Imported Diamond Drawing Dies Rbd/Intermediate/fine Wire Drawing Machine Full Set Copper Round Wire Drawing Dies

Product Description

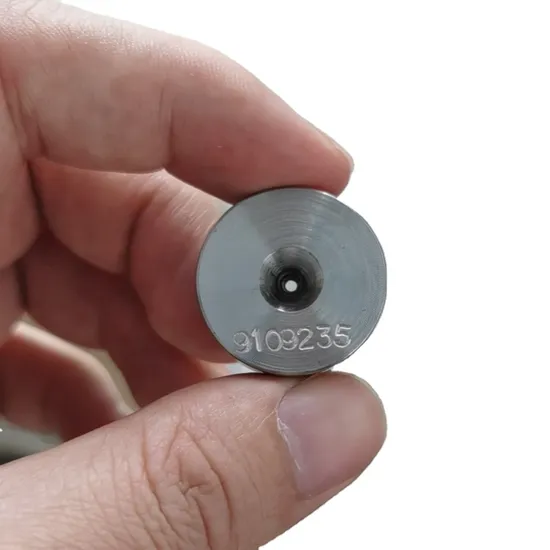

PCD Wire Drawing Dies
Product Parameters

Type	Die Size(mm)	Standard Tolerance(um)	Standard Class
			A	B
PCD Dies	D6	0.1-0.15	25	7
	D12	0.1-0.8	30	15
	D15	0.5-1.5	30	15
	D18	1-2.3	30	15
	D21	1.6-3.4	30	15
	D24	2.6-4.6	42	20

Product Description


PCD schematic diagram

Typical Application
1. Copper wire
2. Aluminum wire
3. Thungsten Stainless steel wire
4. Galvanized steel wire
The free arrangement of diamond particles ensures that the polycrystalline diamond abrasives still have good roundness after use and have a longer service life than nature diamonds and synthetic single crystal diamond molds.
Mold category
We offer RBD/ medium/ fine drawing machines and dies.
We provide our customers with a complete set of matching equipment Replacement, blending mold.
Characteristics
1. Suitable for dry drawing and wet drawing
2. Expectable wire surface quality
3. The free arrangement of the diamond crystals allows the wire to ensure a perfect roundness even in the case of severe mold wear
4. The size of the embryo is guatanteed to achieve the maximum reaming size expected

Detailed Photos

Packaging & Shipping
Company Profile
SWAN INT'L , based in Shanghai , is the manufacturer and exporter of wire , cable and its manufacturing equipments ; the company also provides the consulting service for international bidding projects, Chinese supplier sourcing service for the industrial products supply chain development . The company has developed its business with more than 100 overseas clients in more than 20 countries and regions such as Germany,Italy, Brazil, Southeast Asia, Russia, Turkey, the Middle East Region , Africa, etc.For wire and cable industry , the company provide the overall whole factory technology solutions for wire and cable companies , including the whole factory tailor made technical design , manufacturing equipment technology consulting service , equipments selection and innovation. We supply wire and cable products and OEM service . Our equipments includes :full line for copper rod up-casting manufacturing,Tandem line for CAT5/6/7 series and coaxial cable manufacturing,Equipment units for Drawing/Stranding/Bunching /Extrusion .Our wire and cable products includes : Power cable,telecommunication cable , Enameled copper ( aluminum ) wire ,etc . China government's new " Road and Belt " policy , provide one brand new chance for industry manufacturing capacity cooperation with overseas country and regions .By this new policy ,Shanghai SWAN INT'L sincerely hope to establish and develop long-term , mutual benefit relationship with you in the future .

---
