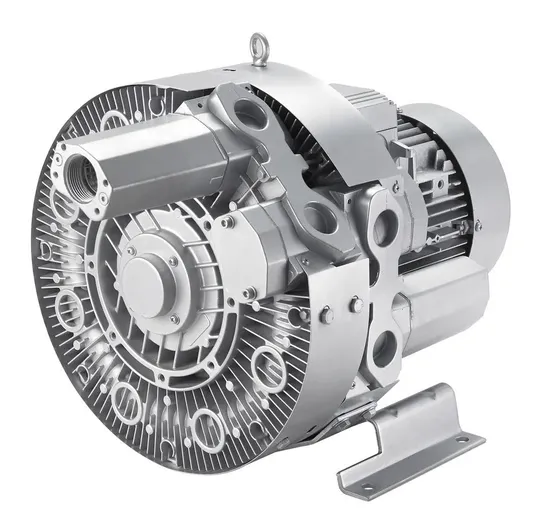

4rb 4hb Air Pump Industrial Side Channel Blower Vacuum Pump

Product Description

Specification:

Model	Stage	Frequency	Power	Voltage		Current	Airflow	Vaccum	Compress	Noise	Weight
4HB3AC		Hz	KW	V		A	m3/h	mbar	mbar	dB(A)	Kg
4HB420H26	Double	50	1.6	200-240Δ/345-415Y		7.5Δ/4.3Y	87	-480	450	61	33
		60	2.05	220-275Δ/380-480Y		7.6Δ/4.4Y	105	-430	410	66

The list for all 4HB series:

Model	Stage	Frequency	Power	Voltage		Current	Airflow	Vaccum	Compress	Noise	Weight
4HB 1AC		Hz	KW	V		A	m3/h	mbar	mbar	dB(A)	Kg
4HB210A75	Single	50	0.55	200-240v		3.1	47	-230	290	57	18
		60	0.63	200-240v		7.1	57	-270	320	62
4HB220A75	Double	50	1.5	200-240v		9.7	47	-370	600	58	30
		60	1.75	200-240v		10.3	60	-420	660	62
4HB310A75	Single	50	0.94	200-240v		7.6	66	-250	350	57	18
		60	1.1	200-240v		9	80	-280	390	62
4HB320A75	Double	50	1.5	200-240v		9.7	65	-400	550	59	32
		60	1.75	200-240v		10.3	76	-390	540	53
4HB410A41	Single	50	1.1	200-240v		10.1	87	-300	380	55	23
		60	1.3	200-240v		10.3	105	-350	390	62
4HB420A31	Double	50	1.5	200-240v		9.7	87	-460	430	61	34
		60	1.75	200-240v		10.3	105	-430	410	66
Model	Stage	Frequency	Power	Voltage		Current	Airflow	Vaccum	Compress	Noise	Weight
4HB3AC		Hz	KW	V		A	m3/h	mbar	mbar	dB(A)	Kg
4HB420H26	Double	50	1.6	200-240Δ/345-415Y		7.5Δ/4.3Y	87	-480	450	61	33
		60	2.05	220-275Δ/380-480Y		7.6Δ/4.4Y	105	-430	410	66
4HB420H56	Double	50	3.3	200-240Δ/345-415Y		13Δ/7.5Y	87	-500	750	61	39
		60	3.8	220-275Δ/380-480Y		13.8Δ8Y	105	-510	850	66
4HB520H26	Double	50	2.2	200-240Δ/345-415Y		11.4Δ/6.6Y	120	-470	460	64	40
		60	2.55	220-275Δ/380-480Y		11.2Δ/6.5Y	145	-500	450	70
4HB520H77	Double	50	4.3	345-415Δ		9.5Δ	120	-500	820	65	51
		60	4.8	380-480Δ		10Δ	145	-530	810	71
4HB620H36	Double	50	3.3	200-240Δ/345-415Y		13Δ/7.5Y	165	-460	500	67	48
		60	3.8	220-275Δ/380-480Y		14.2Δ/8.2Y	195	-480	420	71
4HB620H57	Double	50	5.7	345-415Δ		12Δ	165	-460	740	68	65
		60	6.3	380-480Δ		11.5Δ	195	-480	840	72
4HB650H67	Triple	50	7.5	345-415Δ		16Δ	170	-730	1040	72	86
		60	8.6	380-480Δ		16Δ	200	-700	1040	76

The advantages of Rexchip blowers:
1. 100% oil free, Insulation class is F, Protection class is IP55.
2. Dual frequency 50HZ and 60HZ are available
3. Made of die cast aluminum ADC12.
4. Dual usage: compressor and vacuum (suction and blow).
5. Virtually maintenance free, with sealed long life bearings.
6. Smart design and low noise
7. ATEX explosion proof motor is available for all the blowers.
8. IE2 and IE3 motor are available for some blowers.
9. Good quality and competitive prices.
10. Quick delivery date.
Application of Rexchip blowers/pumps:
Our blowers are widely used in the following applications.
1. Aquaculture (fish and prawn pong aeration)
2. Waste water treatment, sewage treatment system.
3. Pneumatic conveying systems.
4. Pharmaceutical machinery
5. Garment machinery
6. Wood working machinery
7. Plastic machinery
8. Printing machinery
9. Textile machinery
10. Packaging machinery
11. Garment machinery
12. Paper processing.
13. Industrial cleaning machinery
14. Air knives
15. Dental suction equipment / dental vacuum pump
Our workshop:
Our Exhibition:
Our certification: (CE, ISO & CCC)
The instruction for Rexchip blowers:
The team of Rexchip has focused on this kind of blower for more than 15 years. We only produce side channel blowers, it's also called ring blower, regenerative blower, air blower, vacuum pump etc.. We also supply belt drive blowers and all the parts for this kind of blower. The range of the power for our blowers is from 0.12kw to 30kw.
Each production procedure is operated in our own workshop, tooling making, die casting, stamping, high precision machining, assembling and automatic spraying, so we could control the quality, cost and delivery date better.

---
