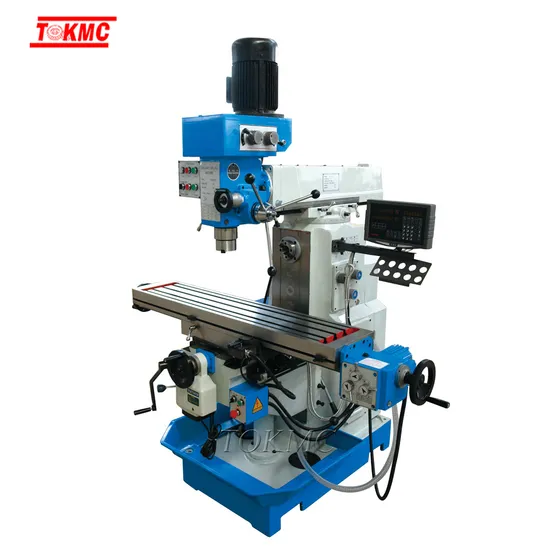

Zx6350c Vertical Horizontal Milling Drilling Machine

US$3,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZX6350C
Structure
Ram
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE
Condition
New
Table Size
1200X280mm
Table Travel
600X280mm
Max.Drilling Dia
30mm
Decibel
Lower Than 85 Decible
Transport Package
1660X1340X2130mm
Specification
1250/1350kgs
Trademark
tokmc
Origin
Shandong China
HS Code
84595900
Production Capacity
100 Sets/Month

Product Description

Vertical horizontal milling drilling machine,asphalt milling machine
Specification X6350C XZ6350A
Table size 1200x280mm 1120x260 mm
Table travel 600x260 mm 600x270m
Distance from spindle nose to table surface 100-400mm 100-400mm
Max.drilling dia 30 mm 30 mm
Max.end milling width 100mm 100mm
Max.vertical milling dia. 25mm 25mm
Max. Tapping dia. M16 M16
Spindle speed range 115-1750 rpm V
40-1300 rpm H		 115-1750 rpm V
40-1300 rpm H
Spindle travel 120mm 120mm
Overall dimension 1660x1340x2130mm 1655x1450x2150 mm
Spindle motor power 0.85/1.5 kw(V) 2.2kw (H) 0.85/1.5 kw(V) 2.2kw (H)
Weight kgs 1250/1350kgs 1500 kgs
