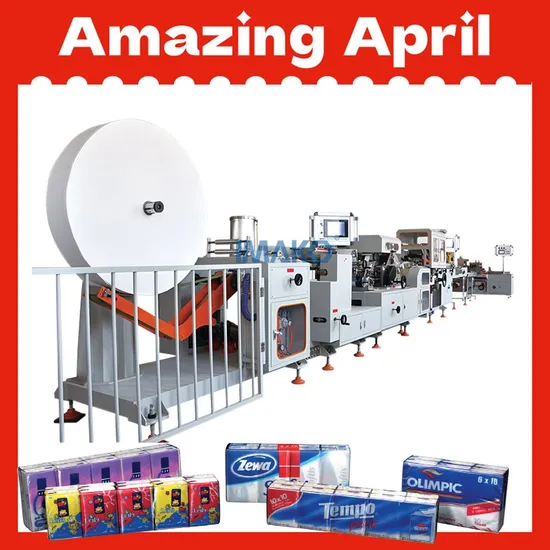

Full Automatic Handkerchief Mini Pocket Tissue Making Machine Rewinding and Cutting Machinery Product Line

Product Description

Product Description 1)product name: full automatic two line handkerchief folding and pakcing product line
2)Mode:TP-H250 double jumbo roll stands
3-1)Jumbo roll width:420mm 3-2)raw paper outlet diameter:Max.1500mm
3-3)diameter of Jumbo roll core :76.2mm
4)cutting size of tissue:203mm×208MM error±1.5mm 5)tissue folding size
5-1)mini size(length×width):72MM×53MM error±1.5mm
5-2)standard size(length×width×height):106mm×53mm error±1.5mm(optional)
6)basic weight:2 layers-17-18gram/ 3 layers--14-16gram/
7)press roller:plating hard chrume/1unit 8)press stripe setting
8-1)version:2×3(standard) 2×4(can be assembled)
8-2)design:press stripe option is according the requirement of the client.
8-3)design error of press flower:±1.5mm
9)packing size:packing size
9-1) mini size 53×72×25(width×length×height,mm) error±1.5mm
9-2)standard size 106×53×25length×width×height,mm) error±1.5mm(optional)
10)packing slice:10slice/bag
11)machine speed:design speed:250bag/min operation speed:200 bag/min(product speed guarantee)
12) film thickness: PE0.04~0.05MM
13)option of tear mouth of film: U type of V type
14)packing film detector:remarks control system
15)safe protection of the machine
15-1) relay start after open switch 5 seconds.
15-2)if safe cover open, machine will stop(optional)
15-3)all the eletric wire must neat and safe.
15-4)alarm start, machine stop.
15-5) if the machine auto stop when mulfuction
16)Main power:AC 3 Ø / 380 V / 50(60) Hz / 4 wire

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country. FAQ

Q 1. Where is your factory located?

A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

Q 2. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q 3: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q 4:How could i contact you if any problem there?

A: Send us email or leave us message, we will contact you as soon as possible.
