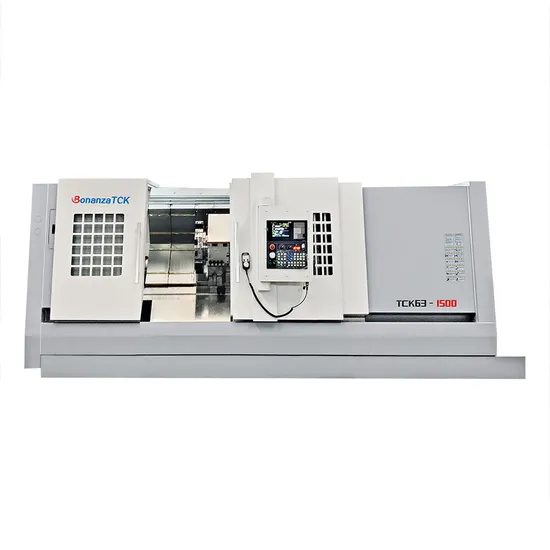

CNC Lathe Slant Bed CNC Metal Turning Lathe Machine Factory Manufacturing Tck63-1500

Product Description

Product Parameters

Project		Units	Specifications	Remarks
Maximum turning diameter on bed		mm	720
Maximum cutting length		mm	1500
Maximum cutting diameter		mm	500	12 stations (cutter head opposite side diameter 450, cutter tower center height 125)
Standard cutting diameter		mm	380
Maximum turning diameter on a skateboard		mm	420
Spindle end type and code			A2-8(optional A2-11)	Spindle unit
Main shaft hole diameter		mm	80
Maximum pass bar diameter		mm	70
Single spindle headstock	Spindle speed range / Maximum spindle output torque	r/min/Nm	50 ~ 3500/215
Main motor Output power	30 minutes/continuo us	kW	18.5/15
Standard chuck	Chuck diameter	inch	10(optional 12)""
X axis fast shift speed		m/min	12
Z-axis fast shift speed		m/min	16
X-axis stroke		mm	250
Z-axis stroke		mm	1520
Standard knife holder form			Horizontal 12 station servo
Tailstock travel		mm	1400

Product Description
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems

---
