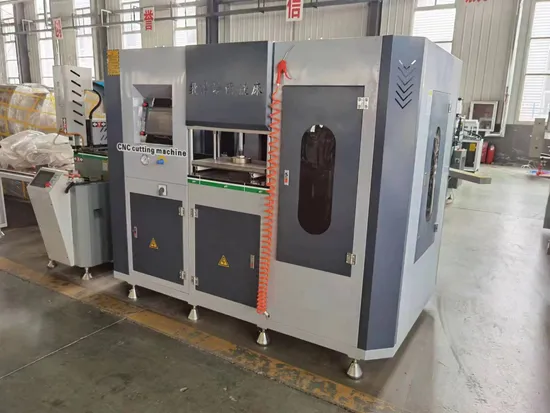

High Speed CNC Aluminum End Milling Machine for Window and Door

Product Description

High speed CNC Aluminum end milling machine for window and door
Product Description
1.Wide applicability: Suitable for milling the end face of aluminum profiles. To meet the coordination between the middle and frame materials. The motor can automatically flip for horizontal or vertical cutting, and is also suitable for oversized profiles.
2.One time can milling multi-profiles, working efficiency is high.Large worktable and large tool travel stroke can process 6 to10 profiles at a time, with high production efficiency.
3.PLC control is stable and efficient,it can put the different size for different profile withPLC controller system.Using CNC technology: Three axis CNC, controlling milling depth and height without the need for customized tools, programming is simple and easy to learn
4.The cutter can be adjusted ,no need to be customized, easy to meet different profiles milling processing.Good processing effect: The saw blade adopts high-quality diamond saw blade, which has high hardness and good durability, making milling processing better and the tool more durable 5.It used hard alu-alloy saw blade, to guarantee milling precision.High machining accuracy: The X/Y/Z axis adopts a linear square rail motion pair, which runs smoothly with high accuracy. The milling motor adopts a high-precision spindle motor, which has low noise and vibration, and high milling accuracy

Model number	LXD-3+1
Working air pressure	0.5~0.8 Mpa
Rotary Speed	2800r/min
Power supply	380V 50Hz
Input power	4.4 kw
Spinder Diameter	Ø32mm
Blade Diameter	Ø250mm
Working Table Range	530(width)*260(height)
Contour dimension(L×W×H)	2600×1000×1740mm
Weight(about)	600kg

FAQ
1.Question:Are you manufacture?
Answer: Yes,we are professional manufacture which have more than 5 workshops.
2.Question: How about the service ?
Answer:
Reply it within 12 hours if it from Ali-trademanager or email .
Deliver max within 15 days. 24 hours for after -sale service.
More than 12 years experience in this kind machine field.
Fluent English ,communication barrier free.
3.Question:What's the guarantee ?
Answer:
Our guarantee is 18 months.
24 hour's technical support by email or calling.
English manual and video tutorial.
2 years quality guaranty for the machine (excluding the consumables).
We will provide the consumable parts at an agency price.
24 hours on line service each day, free technical support.
4. Q: Do you provide equipment operation training?
Answer: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5.Question:if our price is higher than another company or factories ?
Answer: Please check the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
6.Question:How long is the delivery time ?
Answer: For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.
7.Question: What is the payment ?
Answer: Any payment method you want,such as L/C,T/T,D/P,West-union and so on.

---
