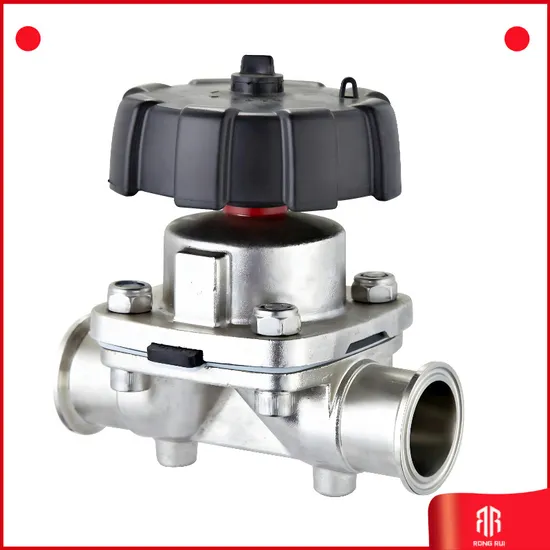

Seamless Tp316L Stainless Steel Diaphragm Valve for Precision Control ASTM

Product Description

Product Description

Technical Parameters:
Operation	plastic handwheel, regulator & position indicator
DN	DN4-DN65
Body	one-channel body, T-shaped body, tank bottom type body, multi-channel body
Body Material	ASTM A351: CF3M	ASTM A182: F316L 904L 2205 2507
	ASTM B564: C276 C22		GB/T 2965 TA2 TA10
Cap and Core Material	ASTM A351 CF8
Connection	Welded, Clamped & Flange
Operation Pressure	DN4-DN100 PN10bar AISI:145psi
Operation Temperature	Dependent on diaphragm materials
Diaphragm Material	EPDM+PTFE separate type: temperature range -10~135ºC; steam sterilization at 150ºC with no time duration limited.
	EPDM+PTFE compound type: temperature range -10~100ºC; steam sterilization at 135ºC with every cycle reaching 60min
	EPDM type: temperature range -10~100ºC; steam sterilization at 135ºC with every cycle reaching 60min
Medium-contacting inner surface roughness: ≤Ra0.4μm ≤Ra0.25μm

Detailed Photos
Certifications
Company Profile Zhejiang Rongrui Pipe Technology Co., Ltd is located in the famous stainless steelmarket--Wenzhou, Zhejiang,which focuses on the production, research anddevelopment, and sales of stainless steel industrial products.Our company covers an area of near 12000m2,nearly 10000m2 production workshop.
We are a source factory, with 8 years of experience in physical productionexperience that can provide favourable prices. A large stock of production, 10 largeproduction equipment and 28 small and medium-sized supporting equipment canoffer customers earliest delivery date. 35 craftsmanship processes adhering tonational standards, 21 rounds of rigorous quality control provide customers with themost reassuring productions.

Our Advantages
FAQ Q: Are you a manufacturer?
A: Yes, we own our factory in Zhejiang province and you are welcome to visit our factory.
Q: What can we buy from you?
A: Stainless steel pipes, pipe fittings,valve,flange and non-standard customized.(All above are sanitary grade)
Q:Why we choose your products?
A: We are confident to provide customers with satisfactory products at the suitable price.
Q:When can I get your reply after the inquiry?
A: Within 15minutes during working time, within 12 hours during non-working time.
Q:What product information should we provide?
A: You need to provide the grade, diameter, thickness,the number of tons and your demands.
Q:How long is your delivery time?
A: Within 5 days for stock delivery, 15-30 days for custom delivery.
Q:Can you provide sample?
A: Sure, we provide sample for free.If you are interested in our products, contact with us then we will send you our sample.

---
