Optical Alignment Fusion Splicer (SKYCOM T-307H)

Product Description

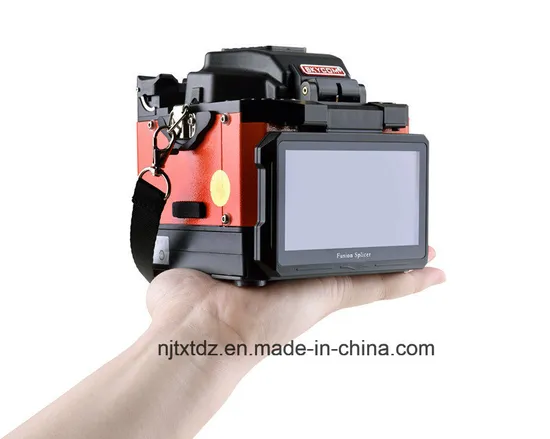

Skycom T-307H Fusion splicer
Thanks for your attention on our SKYCOM T-307H Fusion Splicer, Hope that it will be helpful to you!
Our company is one of the professional manufacturers of Fusion Splicer and OTDR. It has a production line for Fusion Splicer. The products exported to UK, USA, France, Australia, India and Africa, etc, More than 20 countries and district, we also supply OEM for domestic and foreign manufacturers...Our products have won good praises of customers at home and abroad.
The following is the detailed specification of the Fusion Splicer, Should you are interested in them, feel free to contact me, I am confident that I can quote you a competitive price. Thanks in advance.

Description
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself. > We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T- 307 are our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Key Features:
1> Quick splicing time: 6 seconds
2> Quick heating time: 15 seconds
3> More Portable design
Specifications

Model	Skycom T-307H
Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Drop Cable (rubber-insulated wire),SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥60dB
Quick splicing time	8 seconds
Quick heating time	15 seconds
Protection Sleeve Length	40mm, 45mm, 60mm
Splicing Program	50 groups
Operating Language	Chinese, English, French, Portuguese, Spanish, Italian, Indonesian
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)

Power Supply			AC input	AC adaptor: 100~240V input voltage, 50/60Hz;
			DC input	12V, 5A output voltage(DC)
			Battery	Inner lithium battery: 11.1V, 5.2 AH, Up to 180 times splice and heat
Monitor				Dual cameras, 90 bi-dirctional view ,4.3 inches high resolution colorful LCD display
Fiber Image Magnification				X or Y Separately 400 times or Simultaneously 200 times
Estimated Splice Loss				Available
Cleaving Angle Detection				Available
Automatic Self-Check			Camera	Available
			Forward Motor
Tension Test				1.96~2.25N
Storage of Splice Result				6,000 groups of latest splice results
Splicing Model				Auto & Manual & Full Auto & Stepping
Optical Fiber Fixture				3-in-1 cutting fixture; Multipurpose 1+N fixture (for SC/LC/FC connector)
Terminal				USB for Memorizing and Updating
Dimensions				120(W)*120(D)*130(H)mm
Weight				1.29kg(without battery )

Standard Accessories

No.	Item		Quantity
1	Machine T-307H		1
2	Fiber Cleaver		1
3	Fiber Stripper		1
4	AC Adaptor (Charger)		1
5	Battery		1
6	Spare Electrodes		1
7	Cooling Tray		1
8	Instruction CD		1
9	Quick Reference Guide		1
10	Rubber-insulated wire stripping pliers		1
11	Rubber-insulated wire 3-in-1 cutting fixture		1
12	Carrying Case with Carrying Strap		1

*Custom-made Professional anti-shock tool kit (case) with sponge inside *T-307= T-307 +SOC fixture(for SC/LC/FC connector)

---
