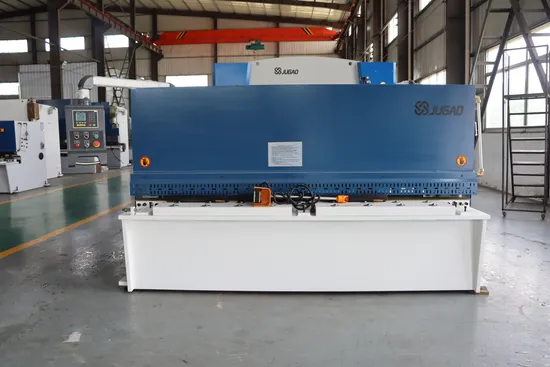

Optional Color QC12y Series Hydraulic Swing Type Shearing Machine

Product Description

Introducing the JUGAO QC12Y Series Hydraulic Swing Beam Shearing Machine, a marvel of engineering and precision. This pendulous shearing machine comes equipped with a pneumatic back support that elevates its functionality and efficiency to new heights. 1. Experience unparalleled performance with our hydraulic transmission and innovative pendulum-type tool holder. The robust frame is meticulously welded for maximum durability, ensuring hard-wearing reliability. Enjoy the smooth and rapid return action powered by a nitrogen cylinder, offering seamless operations.
2. Discover the versatility of stepless adjustment stroke capabilities, allowing for precise customization. The blade clearance is effortlessly fine-tuned using a handle, providing even and rapid adjustments for upper and lower blade edges, ensuring consistent, high-quality cuts.
3. Our cutting-edge NC control system is complemented by a position encoder and inverter, forming a closed-loop control system that offers remarkable speed and high positioning accuracy. Enjoy exceptional stability and pinpoint precision in back gauge displacement. The CNC system includes precision compensation and automatic detection, providing a suite of additional features for enhanced control and efficiency.
Technical parameter

model	Shear plate thickness	Shearable plate width	Number of trips	Back gauge range	Shear angle	main motor power
	mm	mm	min -1	mm	°	kw
6×2500	6	2500	20-25	600	0.5-1.5	7.5
6×3200	6	3200	16-25	600	0.5-1.5	7.5
6×4000	6	4000	14-25	600	0.5-1.5	7.5
6×5000	6	5000	10-15	800	0.5-1.5	7.5
6×6000	6	6000	10-15	800	0.5-1.5	11
8×2500	8	2500	18-25	600	0.5-1.5	11
8×3200	8	3200	16-25	600	0.5-1.5	11
8×4000	8	4000	12-25	600	0.5-1.5	11
12×2500	12	2500	12-20	600	0.5-2	15
12×3200	12	3200	12-20	600	0.5-2	15
12×4000	12	4000	12-20	600	0.5-2	15
16×2500	16	2500	10-15	800	0.5-2.5	18.5
16×3200	16	3200	10-15	800	0.5-2.5	18.5
16×4000	16	4000	8-15	800	0.5-2.5	18.5
20×2500	20	2500	8-12	800	0.5-2.5	30
20×4000	20	4000	8-12	800	0.5-2.5	30
25×2500	25	2500	6-10	800	0.5-3.5	37
25×3200	25	3200	6-10	800	0.5-3.5	37
25×4000	25	4000	6-10	1000	0.5-3.5	37
32×2500	32	2500	6-8	1000	0.5-3.5	45
32×3200	32	3200	6-8	1000	0.5-3.5	45
