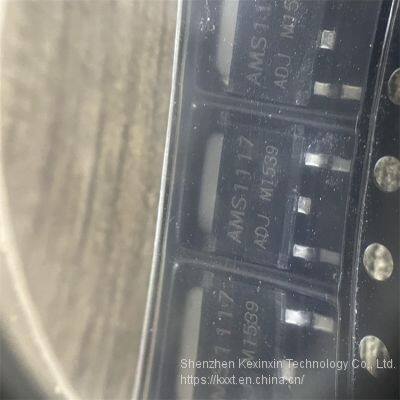

AMS1117-ADJ
AMS
0.8A Adjustable/Fixed Low Dropout Linear Regulator
General Description
The AMS1117-ADJ and AMS1117-1.2,-1.5,-1.8,-1.9,-2.5
-3.3 and-5.0 are low dropout three-terminal regulators with
0.8A output current capability.These devices have been
optimized for low voltage where transient response and
minimum input voltage are critical.
On-chip thermal limiting provides protection against any
combination of overload and ambient temperatures that
would create excessive junction temperatures.
The AMS1117 series regulators are available in the industry-standard SOT-89 packages
Key Features
Low dropout voltage
- Load regulation: 0.2% typical
- Optimized for Low Voltage
- On-chip thermal limiting
- Standard SOT-89 packages
- Three-terminal adjustable or fixed low drop out
1.2V,1.5V,1.8V, 1.9V, 2.5V, 3.3V, 5V. Regulators
Applications
- High efficiency linear regulators
- Post regulators for switching supplies
- Battery chargers
- 12V to 5V linear regulators
- Motherboard clock supplies
>>
