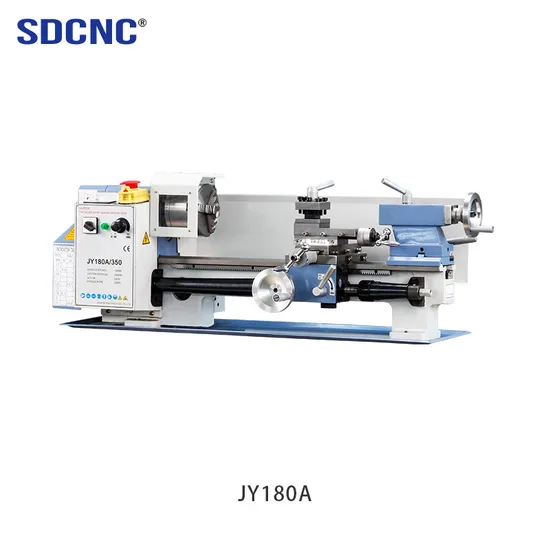

Small Home Lathe Mini Ordinary Lathe Metal DIY Mini Torno Machine Jy180A

Product Description

Product Application This machine can turning ,drilling round bar work piece,process out circle ,inner bore ,cutting ,threading , drill hole ,reaming ,popular with small Workshop ,development,DIY hobby ,school for training .
Main Features
1) most economic ,widely useful household machine.
2) V-way bed is precision ground,bed surface super hardened.
3) Spindle is supported by precision tapered bearing.
4) Lathe headstock is constantly oiled during operating.
5) Longitudinal axis power feed for threading .
1.most economic ,widely useful combination machine .
2.V-way bed is precision ground
3.Spindle is supported by precision tapered bearing
4.Lathe head stock is constantly oiled during operating
5.Belt drive mill head get quiet operation
6.Mill head can be titled +-90 degree
7.Power longitudinal feed follow threading
8.Adjustable gibs for slide ways
9.Equipped with lead screw cover and work table
10.Change gear has large feed and threading function
11.Tail stocks can be off set for turning tapers
Product Parameters

PECIFICATION	JY180A
Distance between centers	350mm(14")
Swing over bed	φ180mm(7")
Swing over cross slide	φ150mm
Spindle taper	MT3
Tailstock taper	MT2
Chuck diameter	φ100mm
Spindle bore	φ22mm
Spindle accuracy	0.01-0.02mm
Cross slide travel	65mm
Range of metric threads (kinds/range)	9/0.5-2.5mm
Range of imperial threads (kinds/range)	19/12-52T.P.I
Spindle speed	50-2500rpm
Power of motor	500W (Brushless Motor)
Packing size	810*370*380mm
Gross weight	40/46kg

---
