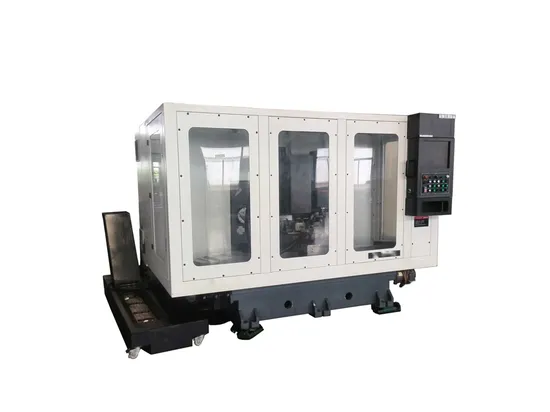

Tools Combination Wrench Manufacturing Process CNC Milling Machine for Making Wrenches

Product Description

Machine Applications: Right angle face milling Teeth top milling Teeth milling Shoulder milling Machine Features: 1,One clamping for four operations
This machine can fulfill four adjustable wrench handle and jaw operations in one clamping. 2,Better precision
Thanks to the four operations combined in one clamping, it can avoid from the errors which are caused by the repeated clamping. 3,Easy to set the parameters
All the operations parameters are fulfilled by program, so the work piece quality is stable and it is easy to adjust the size. 4,Less labor force
The four operations can be fulfilled by only one operator .Meanwhile, one operator can operate two machines that means he can achieve eight operators' workloads of the traditional operations. 5,Less working intensity
The machine is equipped with the automatic feeding device and clamping mechanism. The operator only needs to put the work pieces, so it can reduce the work intensity a lot. 6,Standard CNC machine designing
The CNC system adopts the specialization and process designing, so it facilitates to learn and operate.The machine structure and manufacturing adopt the standards of CNC machining center which is high precise and rigid. 7,Full machine enclosure
The machine tool is shielded completely and equipped with chip conveyor system which can achieve the organized and clean working environment. 8,Production
The productivity can reach 120 pcs/h for the 12" adjustable wrench jaw.
Machine Parameters:

Parameters	Unit	3GX
Worktable	mm	400×400
Max.loading	kg	400
T slot	mm	3×18×115
Max.X axis travel	mm	1300
Max.Y axis travel	mm	250
Max.Z axis travel	mm	240
Max. speed	r/min	700/1440/700/105
Spindle motor	kw	1.5/4/2.2/7.5
Guide rail	X/Y axis: linear rail ; Other axis: box way
Positioning precision	mm	0.01
Repeated positioning precision	mm	0.005
Total power	kw	3 phase 380V 22KW
Dimension	mm	2870×2315×2075
Weight	kg	9000

FAQ
Q1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
Q2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q3. What's the main products of your company?
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q4.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.
Q5. Payment Terms
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q6. How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your Sunrise sales representative for details.
Q7. Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Q8. If I can't know how to operate. Can your engineer help me programme well on machine?
Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.And we warmly welcome you to visit our factory at any time, thank you.

---
