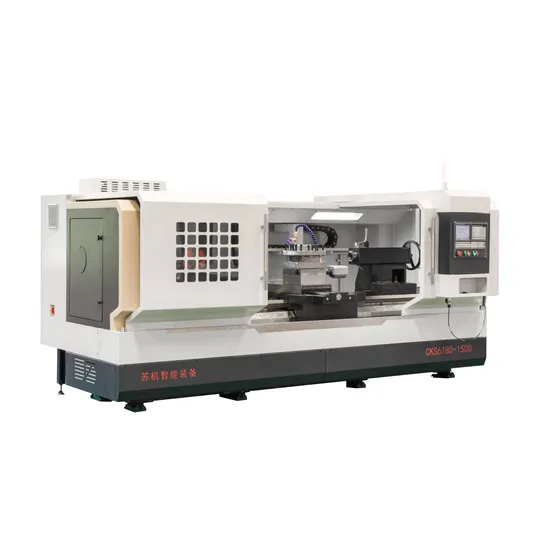

High Precision 595mm CNC Lathe Tool for Metalworking

Product Description

Company Profile
Suji Intelligent Equipment Jiangsu Co., Ltd
Suji Intelligent Equipment Jiangsu Co., Ltd was established in 2018 and is located in Jiangsu Shuyang National Economic Development Zone. We specialize in CNC machine tools, vertical machining center development, production, research, sales, and service. Our professional technical team has years of experience in CNC machine tool manufacturing, ensuring high-quality and cost-effective machine tools for various industries.
Major Products:
Vertical machining center series
Horizontal machining center series
Gantry machining center series
Flat rail CNC lathe
Inclined rail CNC lathe
Our products are known for high speed, rigidity, performance, and efficiency, making them the preferred choice for industries such as communication, consumer electronics, medical, LED, automotive, aerospace, and more. We have strong research and development capabilities, years of manufacturing experience, and are ISO9001 certified.
Quality and service are at the core of our business. We aim to create value for customers, opportunities for employees, and benefits for society. Our service concept is based on professionalism and sincerity, ensuring high-quality pre-sale, sale, and after-sales service, along with technical support. We strive to meet customer needs and market demands, fostering partnerships for a better future.
Product Description
Product Parameters

S/Model	Unit	VMC640S	VMC850S	VMC855S	VMC1160S	VMC1370S	VMC-1580S
Machining Range
X axis travel	mm	600	800	800	1100	1300	1500
Y axis travel	mm	400	500	550	600	700	800
Z axis travel	mm	450	500	550	600	700	700
Spindle nose to table	mm	150-600	150-650	120-670	120-720	110-810	130-830
Spindle center to column	mm	470	545	595	645	750	810
Workbench size
Table Dimension	mm	700x420	900x500	1000x550	1200x600	1400x700	1800x800
T-slot Dimension	mm	3x14x120	3X18X130	5X18X90	5X18X100	7X18×100	22X5X140
Max Load	kg	250	500	500	800	1000	1500
Spindle
Taper		BT40	BT40	BT40	BT40	BT40/BT50	BT40/BT50
Max Speed	rpm	Direct 12000			8000-1000rpm
Infeed System
G00 fast infeed(Axis X/Y/Z)	m/min	48/48/48	48/48/48	48/48/48	36/36/36	36/36/36	36/36/36
G01 cutting infeed	m/min	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000
Tool Magazine
Type	type	Disc	Disc	Disc	Disc	Disc	Disc
Capacity	unit	24	24	24	24	24	24
Machine Dimension
Length	mm	1800	2300	2500	3200	3600	3850
Width	mm	2400	2800	2000	2400	3300	3100
Height	mm	2300	2700	2200	2800	2900	2900
Weight	kgs	4600	4600	4800	7500	10500	12000

Brands of Main Parts

Part Name	Origin	Manufacturer	Model
CNC system	FANUC, Japan	FANUC	0i-MF PLUS(Type 3)
Servo feed motor	FANUC, Japan	FANUC
Servo spindle motor	FANUC, Japan	FANUC
Servo integrated driver	FANUC, Japan	FANUC
Spindle group	Taiwan	Royal/Kenturn	BT40-φ150
Roller screw	Taiwan	HIWIN/PMI	FDC4012
Linear guide rail	Taiwan	HIWIN/PMI	45#/45#/45#
Spindle bearing	China mainland	NSK
Unclamping Cylinder	Taiwan	Haocheng	4.5T
Disk type tool magazine	Taiwan	Ammach/Tokuda/Okada	BT40-24T
Locking nut	Taiwan	Svit	M30×1.5P/ M35×1.5P
coupling	Japan	Sanmu
heat exchanger	Japan	Miki Pully	EA-02W/220V
Screw bearing	Japan/Germany	NSK/FA.G	30TAB062
Oiling machine	Taiwan	Ishan
Main electrical components	France	Schnneider
Pneumatic components	Taiwan	TWSNS
Chain chip conveyor	China mainland	SUJI

---
