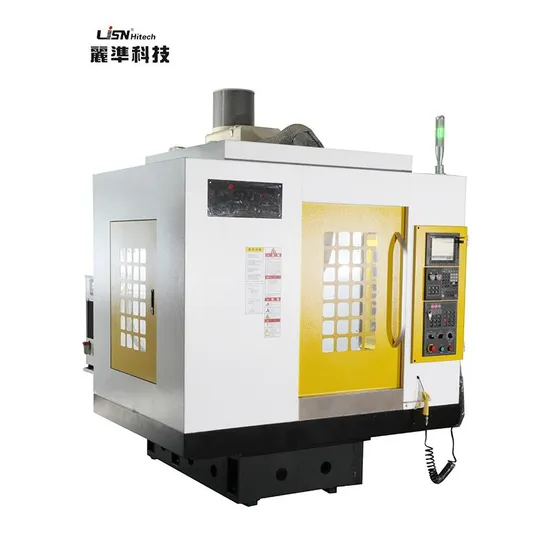

Lisn-T600 CNC Vertical Machining Center High Speed Drilling and Tapping Machine

Product Description

Product Description
High-speed high precision VMC for molds processingBased on Lizhun innovative technology, VMc-850V is specialized in the high precision molds manufacturing industry. Designed with super rigidity structure and X/Y/Z axis high precision linear guideway and ball screw with locking pretension design, VMC850 could provide you with fast, strong, stable machining performance, which made it applicable to the high precision component machining and die-&-mold machining. It is broadly used in the industry of automobiles, machinery, instrumentation, light industrial textiles, electronic instruments that can fully present high precision and high-efficiency machining ability at a very reasonable cost.
Detailed Photos
Product Parameters

ITEM	MODELS	TV600
WORKTABLE (WIDTH*LENGTH)	mm	720x400
DISTANCE BETWEEN T SLOTS	mm	3x14x125
MAX LOAD BEARING OF WORKTABLE	kg	200
X/Y/Z AXIS TRAVEL	mm	600/400/300
DISTANCE FROM SPINDLE NOSE TOWORKBENCH	mm	130-480
SPINDLE HOLE TAPER	-	BT30
SPINDLE SPEED RANGE	r/min	20000
TRANSMISSION OF SPINDLE BOX	BELT/DIRECT	Optional
SPINDLE MOTOR POWER	kW	3.7/5.5( Mitsubishi) /5.5/7.5(Fanuc)
X/Y/Z RAPID FEED SPEED	m/min	48/48/48
MAX CUTTING FEED SPEED	mm/min	1-20000
TOOLS MAGAZINE CAPACITY	pcs	21
X/Y/Z POSITION ACCURACY	mm	±0.005
X/Y/Z RE-POSITION ACCURACY	mm	±0.003
MACHINE DIMENSION	mm	1930x2450x2450
MACHINE WEIGHT	kg	3000

Standard Configuration for TV Series
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Working condition warning lights / Self-powered electrical shutoff system / Clean air gun/ Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
Optional Configuration TV Series NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement and damage detection / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler.
Company Profile

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
