Corn Grinding Machine Corn Cobs Grinding Machine Rice Husk Hammer Mill

Product Description

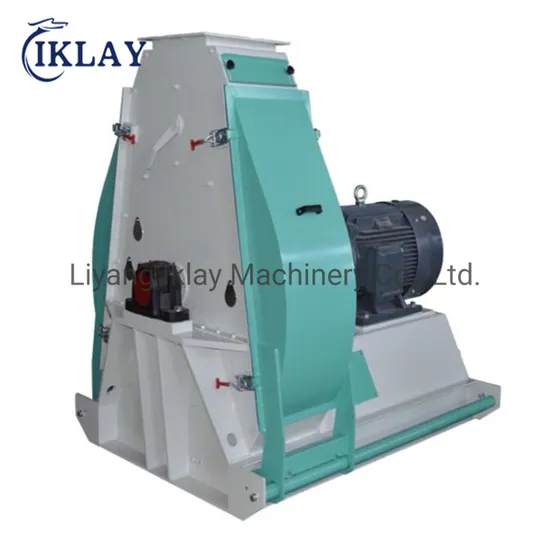

Corn grinding machine Corn cobs grinding machine rice husk hammer mill

TECHNICAL PARAMETER

Model	Dia of Rotor(MM)	Width of grinding chamber(MM)	Rotor Speed(rpm)	Main Power (kw)
SFSP112*38C	1120	380	1480	90/110
SFSP112*50C	1120	500	1480	132/160
SFSP112*75C	1120	750	1480	180/200
SFSP112*100C	1120	1000	1480	220/250/280
SFSP138*38E	1380	400	1480	110/132
SFSP138*50E	1380	500	1480	132/160
SFSP138*75E	1380	600	1480	132/160/200
SFSP138*100E	1380	750	1480	200/250

FEATURES 1.Adopting international advanced technique, crushing chamber is designed as water drop figure, effectively eliminate the phenomenon of circulation in the process of crushing, rapid discharge.

2.With full open operating door, screen is tensioned outside and can be maintained and replaced easily.

3.Fully optimized arrangement of hammer, hammer sieve clearance can be adjusted, the transition of ordinary crushing and fine crushing.

4.Tested by the high precision dynamic balancing machine, equipment running smoothly, lower noise, more ideal performance.

5.With special "W" type secondary crushing structure, enhancing the friction crushing effect, reducing the grinding power consumption, the output can be increased by 25%.

6.Key parts use well, such as S K F bearing, Chinese top brand or Siemens Beide motor, tungsten carbide treatment for hammer mill ends.
MORE PHOTOS
RELATED PRODUCTS
(We also provide a hammer mill system/ grinding process including spare parts of hammer mill.)
---Impeller Feeder
---Hammer Blades & Screens
---Pulse Dust Collector or Cyclone& Airlock (Dedusting system)

---
