Single-component heat-curing Epoxy Structural Adhesive for ceramics, metals, and composite materials.

Product Description

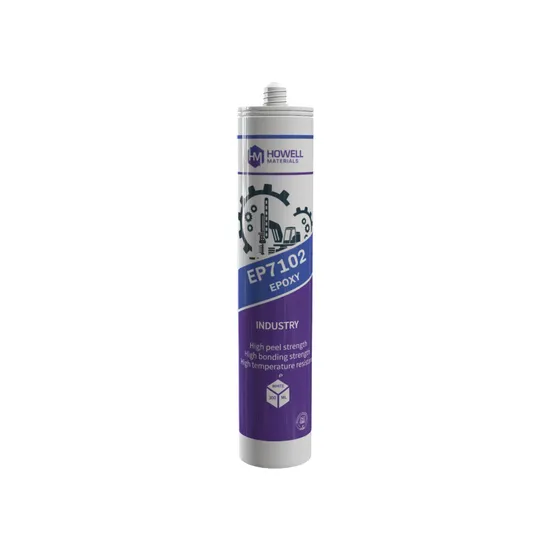

Epoxy Structural Adhesive HM-EP7102
Items		Typical Value
Appearance		Gray Paste
Density (g/cm3) 1.2		1.17
Viscosity (mPa.s)		3.5
Thixotropic		2.15
Curing Condition		(60~120)min@120ºC /(30~60)min@150ºC
Shear Strenth (Mpa)	Carbon Steel - Sandblasted	37.2CF
	Carbon Steel	30.1CF
	Aluminum - Anodized	17.4CF
	Nickel-Plated Steel	27.3CF
	Stainless Steel	34.5CF
	Galvanized Steel	27.6CF
	FR-4	19.1
	FRP	23.2
Peel Strength (N/mm) - Anodized Aluminum		5.2
Impact Strength		34.5kJ/m2
Volume Resistivity		4.16*1015Ω.cm
Tg (ºC)		123
Operating Temperature (ºC)		-40~220

Product Description:

EP7102 is a single-component heat-curing epoxy adhesive. Post-curing, it exhibits exceptional thermal stability and aging resistance. It is ideal for applications requiring high adhesive strength, capable of bonding ceramics, metals, composite materials, and more.

Product Performance Characteristics:

Single-component

High thixotropy, showcasing excellent processing properties

High-temperature resistance

Superior adhesive strength

High peel strength

Typical Applications:

Self-adhesion and mutual adhesion of ceramics, metals, and composite materials.

STORAGE AND SHELF LIFE

The product is highly sensitive to moisture and thus requires storage in a sealed package. It should be stored in a cool, dry place at temperatures between 2-8°C. The shelf life is 6 months when stored in sealed, airtight conditions

SAFETY Keep out of reach of children. Before operation, please carefully read the specifications of products and material, and instructions on the package of container. For more information about safety, please
