V40 Heavy Duty Vertical Knee-Type Milling Machine Universal Milling Machine Price

Product Description

Product Description

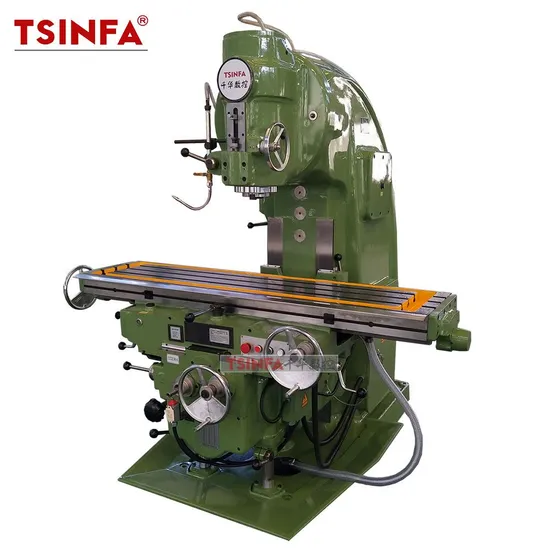

Universal Milling Machine heavy duty V40 vertical millimg machine For metal
Product Parameters

Specifications	Units	VV36	V32	V40
Table size	mm	1500×360	1325×320	1700×400
T- slot number and size	mm	3-18-80	3-18-70	3-18-90
Max load capacity	kg	300	500	800
Max. longitudinal travel	mm	900	700/680	900/880
Max. cross travel	mm	300	255/240	315/300
Max.vertical travel	mm	400	350/330	385/365
Range of feed speeds	mm/min	22-555	X,Y: 23.5-1180, Z: 8-394	X,Y: 19-950, Z: 12.6-634
Speed of rapid travels	mm/min	555	X:2300, Z:770	X:2300, Y:1540, Z:770
Spindle speed range	r/mm	60-1700	30-1500	30-1500
Spindle speed grade	stpes	12	18	18
Spindle travel	mm	60(optional)	85	85
Head rotation	°	±45°(optional)	±45°	±45°
Spindle nose to working	mm	80-440	45-415	30-500
table distance
Spindle motor power	kw	4	7.5	11
Overall dimensions	mm	About 1700*1680*1880	About 2530*1890*2380	About 2556*2159*2258
(L*W*H)
Gross Weight	kg	About 2200	About 2900	About 4250

Optional Accessories
Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.

---
