5tons 8m3 Waste Refuse Compactor Truck with Swing Arm Garbage Container

Product Description

5tons 8m3 Waste Refuse Compactor Truck with Swing Arm Garbage Container Product Description
1-refuse compactor truck is divided into compactor garbage truck, swing arm garbage truck, hook lift garbage truck, roll on roll off garbage truck,bin lift garbage truck,dumper garbage truck,sealed garbage truck,container garbage truck, rear load garbage truck and so on.
2--Easy Full Automatic Operation: computer control system for loading and unloading operations.
3--One Person Operation: Reducing sanitation working, greatly improves the working environment.
4--Double Operation System of Rear Loader Refuse Truck: computer control system and manual operation greatly improves the vehicle usage rate.
5--Capacity of refuse compactor truck: option for 3-20m3 garbage truck,optional for loading capacity from 1ton to 16tons
6--Steering wheel of refuse compactor truck: both left and right hand drive,meet the needs of different countries
7--Emission standard refuse compactor truck: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 rear loader truck
8--Truck chassis of refuse compactor truck: option for japanese and chinese brand,such as dongfeng,isuzu,faw,foton,howo,jac,jmc,forland...
Specifications of dongfeng 4X2 5tons 8cbm refuse compactor truck

Drive type	4X2, New condition, LHD
Vehicle Main Dimensions	(L x W x H)mm		7350×2250×3000
	Wheel base (mm)		3300 or 3800
	Track front/rear mm		1745/1800
	F/R Axle-Load		/ kg,
	Approach/departure angle		8/12
Weight in KGS	Curb Weight		6100kg
	GVW		11450kg
Max. driving speed(km/h)			98
Engine	Brand		Chaochai engine,Diesel ENGINE
	Model		CY4102-C3F
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling;
	Horse Power(HP)		120hp
	Emission standard		Euro III
Gearbox	6 forwards& 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	8.25R20, 6 pc including 1 spare tire
Steering Gear	power steering, hydraulic steering with power assistance
Equipment for Rear Loader Refuse Truck
Garbage Box Material	Carbon Steel Q235
Garbage Box Volume	6cbm pr 8cbm
Body material	Floor plate 4mm and side plate 5mm
Waste water tank	200L
Filling container volume	500L
Filling time	8~10s
Filling cycle time	50~60s/time
Discharge time	30~40s
Hydraulic System	Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board.
Push Panel	Used to push and squeeze garbage,works together with the skid way in the box

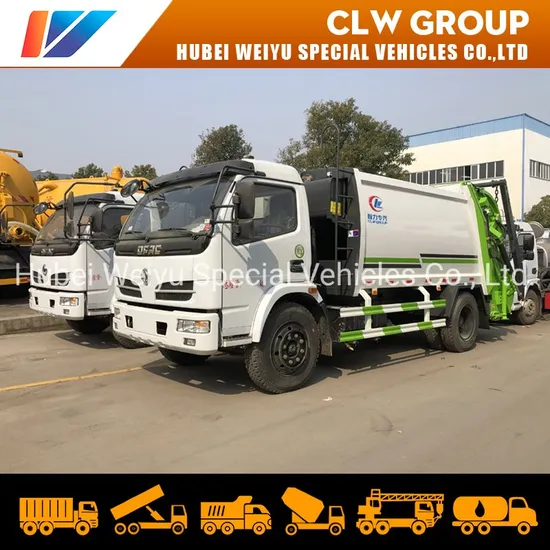

Reference picture of Dongfeng 5tons refuse compactor truck
Different design of refuse compactor truck
Regular Overseas exhibition and after sales service
Contact Shirley for more details
Ms. Shirley Fu
Sales Director
Hubei Chengli Special Automobile Co., Ltd.
Hubei Weiyu Special Vehicles Co., Ltd.
Factory:Chengli Automobile Industry Park,Suizhou City,Hubei Province,China
Office:Room 2614-2615,Block B,Longyang Time Square,Hanyang District,Wuhan,China

---
