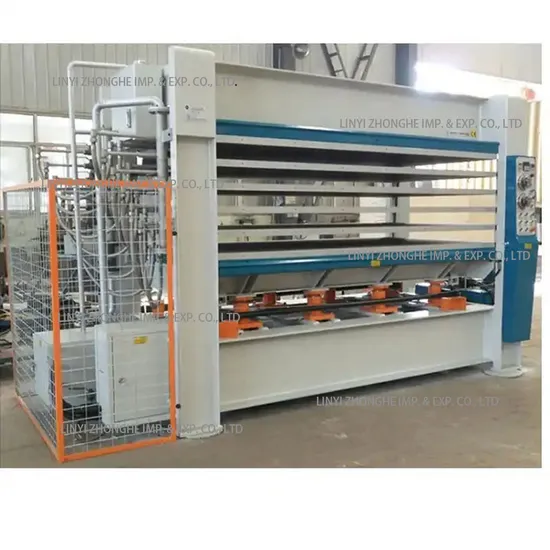

Better Plywood Hot Press Machine for Wooden Doors

Product Description

Product Parameters

Model	BY214*8/160(3)H
Total pressure	160T
Dimension of hot platen	2600*1400*42mm
Number of layers	3
Opening	100mm
Diameter & stroke of Oil cylinder	100mm* 300mm
Number of cylinders	8
Low pressure pump flux	63L/min
High pressure pump flux	2.5L/min
Heating medium	Steam or thermal oil
Frame structure	Composite
Working pressure of high pump	25Mpa
Total power	6.0Kw
Overall dimension (Approx)	3750*1450*2450approx
Net Weight (Approx)	12800Kg

Detailed Photos
Factory Display

The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3- Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.

Packaging & Shipping
Company Profile
Frequently Asked Questions
1. Rich experience and professional design
We have abundant experience in plywood production, also has many years exporting experience. Each equipment location,passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory,with the same configuration,the price is competitive.And we are familiar with the Chinese market,our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well,and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provideS one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-salesservice team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.

---
