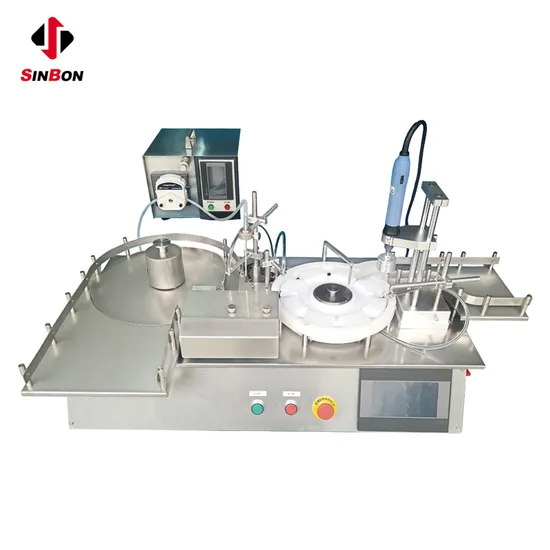

Combination Automatic Liquid Filling and Capping Machine

Product Description

Tabletop Automatic Filling and capping machine Product DescriptionFEATURES
Using advanced automatic interface, operation is simple and parameters can be adjusted and saved at will
The filling head can be matched with gear pump, peristaltic pump and ceramic pump to meet different requirements of liquid filling
Filling & capping integrated, reduce cost, prevent operation fatigue and improve production efficiency and take small installation space
Quantitative filling, constant torque screw cap, consistent products
Maximum production capacity can reach 2100 bottles per hour (depend on filling volume, production capacity will be changed)
Working Process: manually infeed empty bottles to rotary table, bottles automatic move to filling station, after filled liquid, bottles move into star wheel go to capping station, manually put the caps on bottle mouth, electric capper will automatic capping the bottles.
APPLICATION
Widely used in medicine, pharmacy, food, cosmetics, spices, essential oil, chemical and other industries

Model No.	SXF-100
Filling Volume	0~200ml/bottle
Filling accuracy	0.5~1% (depend on filling volume and liquid filled)
Production Capacity	≤40 Bottle/min.
Power Source	1P; AC200V;50~60Hz; 500W
Air Source	0.5~0.7MPa
Dimension	L 1150 x W 620 x H 518 mm
Weight	75kg

Certifications
Packaging & Shipping
Company Profile
FAQQ1: Which trade term used for displayed prices?A1: All prices are based on EXW, because freight changed too much during this special situation, please check with us for real freight costQ2: How to install and commissioning machine?A2: This machine don't need special installation, connect with right power source, machine can work. Other operation guide, please contact with us, we can offer you video or online guide you to operate machine. Fast support to ensure you don't need worry about after sales service.Q3: WarrantyA3: Our machine standard warranty period is 12 months. For the whole life of machine, we offer you remote technical support for free and offer spare parts based on costs.Q4: Are you trader or manufacturer?A4: We are manufacturer and we design and produce SINBON brand machines. We can custom made machine based on your special requirements.

---
