Innovative Peanut Roasting Equipment and Harvester for Quality Production

Product Description

Product Parameters

Model		4LZJ-2500A
Drive type		4WD(Hydraulic)
Dimensions(L*W*H)(mm)		6560*2875*3530
Weight(kg)		6870
Working width (mm)		2500
Engine	Horsepower	150HP
	Engine Model	YUCHAI
	Engine rated speed(r/min)	2300
Production Efficiency	Productivity(hm²/h)	0.3-0.7
	Fuel tank capacity(L)	240
	Mini clearance(mm)	260
	Feeding speed(kg/s)	3
Thresher	Grain tank(m³)	2.3
	Sorting method	Vibrating screen +Centrifugal fan
	Stem and vine treatment method	Concentrate
	Peanut harvesting mechanism type	Eccentric spring tooth type
	Picking drum type	Longitudinal axial flow blade type
Chassis	Wheel base(mm)	3100
	F/R wheel space(mm)	F:1920/R:1755
	Tyre Size(F/R)	F:15-24/R:10/75-15.3

Detailed Photos

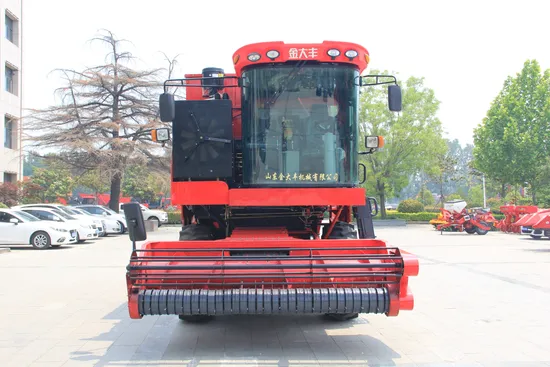

4HZJ-2500A The 4HZJ-2500A type peanut harvester is a state-of-the-art, four-wheel drive, self-propelled machine designed to revolutionize your peanut harvesting process. This innovative equipment seamlessly performs peanut picking, sorting, cleaning, collection, and stalk collection operations all in a single, efficient pass, ensuring a streamlined and productive harvest.
Product Description
Comprehensive Technical Specifications of the 4LZJ-2500A
1. High-Efficiency: Boasting a powerful 150-horsepower engine, our machine stands out with its advanced design. The water tank cover incorporates an airflow negative pressure rotary dust removal mechanism, offering excellent heat dissipation. Additionally, the fuel-saving switch ensures optimal fuel efficiency during both transportation and harvesting.
2. High-Temperature Resistance: All primary transmission components come equipped with premium imported bearings, such as the pickup slide bearing and the front bearing of the peanut rolling drum. These components provide superior sealing performance and exceptional resistance to high temperatures.
3. Enhanced Flexibility: The braking system is designed with front disc and rear drum brakes, complete with hydraulic assistance for effortless operation. The pick-up device harvesting platform benefits from dual oil cylinder support, ensuring stable lifting of the cutting platform. Our independent constant current gear pump steering system guarantees light and agile steering. operate, and reliable performance. The pick up device harvesting platform uses double oil cylinder support, stable lifting of the cutting platform. The steering system adopts an independent constant current gear pump, light and flexible steering.
4. Supreme Comfort: Experience an unparalleled level of comfort with our cab's all-around transparent design, offering a panoramic view. You can monitor the grain box status at any time directly from the cab. Additionally, the foreign matter conveying image mounted atop the conveyor belt allows you to oversee the conveying process seamlessly.
5. Minimal Damage Rate: Utilizing a centrifugal fan for peanut collection, our technology significantly reduces shell damage. The suction-type grass removal system ensures a high wind speed and efficient grass removal, leaving the harvested peanuts cleaner than ever.
6. Unwavering Stability: With a hydrostatic drive, our equipment provides a smooth and comfortable control experience. The four-wheel drive feature guarantees exceptional traction, preventing slipping even on sandy or muddy terrains.
