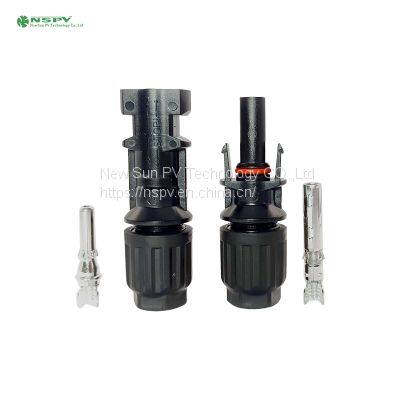

| PV 4.0 Cable Connector |
|
| Product Specifications |
|
| Insulation material | PPE/PA | Safety degree | II |
|
| Rated current | 30A | Flame class | UL94-V0 |
|
| Rated voltage | 1000VDC | Insertion force/Withdrawal force | ≤50N / ≥50N |
|
| Test voltage | 6kV(50Hz,Imin) | Ambient temperature range | -40℃…+85℃(IEC) |
|
| Typical contact resistance | ≤0.25 mΩ | Suitable cable cross sections | 1.5~6mm2/16~10AWG |
|
| Contact material | Copper,Tin plated | Connecting system | Crimp connection |
|
| Degree of protection | IP67 | Nut cap locking force | 1.5~1.8Nm |
|
| Overvoltage category/Pollution degree | CATIII/2 | Upper limiting temperature | 110℃(IEC) |
|
