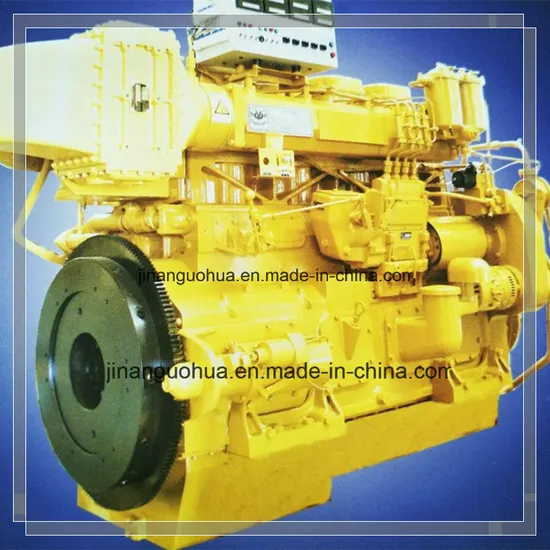

4190zlc Jinan Jichai Marine Diesel Engine

Product Description

4 in-line marine diesel engines
Model	Rated Power(kw/hp)	Rated speed(r/min)	Specific fuel consumption(g/kw'h)	Specific oil consumption(g/kw'h)	Overall dimension L*B*H(mm)	Net weight(kg)
4190ZLCZ-R	330/450	1450	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLC	330/450	1450	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLCZ-1R	270/360	1200	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLC-1	270/360	1200	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLCZ-2R	220/300	1000	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLC-2	220/300	1000	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLCZ1-2R	180/240	1000	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLC1-2	180/240	1000	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLCZ-3R	300/400	1300	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLC-3	300/400	1300	≤ 205	≤ 1.5	2290*1240*1750	3000
4190ZLC1	330/450	1450	≤ 205	≤ 1.5	2290*1240*1750	3000
Main technical data No. and arrangement of cylinders:4-cylinder,in-line Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection Bore:190mm Stroke:210mm Total displacement:23.82L Compression ration:14:1 Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) Starting method:Air motor or electric motor Lubricating method:Pressure and splash lubrication

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.

---
