Mobile Grain Loading Machine a New Type of Tube Screw Conveyor Mounted Rubber Tube Grain Suction Machine

Product Details

Product Description

Product Description
Simple and easy operation of grain suction machine price wheat sorghum loading grain suction machine rural grain loading machine
Product Introduction

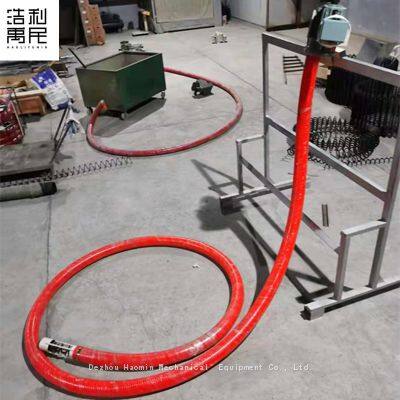

Flexible grain auger screw conveyor with steel screw blade inside is one kind of bulk
grain conveyor adopt the pneumatic and motor power for truck loading and grain
elevator purpose. With the feature of small cubage and easy to carry,it is universally
used by the family farm. It is mainly applied for collecting of wheat,corn,paddy,cereal,
and any other similar granules etc.With single phase motor power,it can loading the
large capacity with low energy consumption and easy to use at home.
Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
Driving device: Motor, belt pulley, transmission belt and safe cover.
Inlet device and discharge device.
Pipe diameter: 3.5-6 inches
Length: 2-30 meters
Motor: 3-10KW

Model No.	Length (Meters)	Pipe diameter	Loading	Motor phase-power(kw)	Installation	Structure	Conveying height
			Capacity(t/h)
LS-XLJJ-100-6	6	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
LS-XLJ-100-8	8	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
LS-XLJ-100-10	10	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
YG-XLJ-100-12	12	100mm	5-8	Single phase	Vehicle mounted	Steel screw blade inside	3-4m
				-3kw
LS-XLJ-160-6	6	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw
LS-XLJ-160-8	8	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw
LS-XLJ-160-10	10	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw
LS-XLJ-160-12	12	160mm	15-20	Three phase	Vehicle mounted	Steel screw blade inside	3-4m
				-4kw

Q1: Are you a factory or trading company?
We are a factory with self-supported import and export right.
Q2: How can I trust on your company? We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Swi tzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand,Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith,punctual, strict quality control and reasonable price, throughout s the pledge we to each customer.
Q3: Where is your factory located? How can I visit there? Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. AllI our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website? It is very easy. Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment? Payment is made via Telegraphic Transfer (T/T) through the bank against the Performa invoice. 40% as prepayment and the balance when the goods are ready for shipping.Irrevocable L/C at sight could be also accepted.
Q6: What' s the Payment terms? FOB, the price of the implement without sea shipment costs.
Q7: At which port do you usually ship the good? We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q8. How about the Warranty ? 12 months warranty from the time of the goods arrive at destination.
