GLIMPSE stainless steel skin pass mills

Product Details

Product Description

Product Description

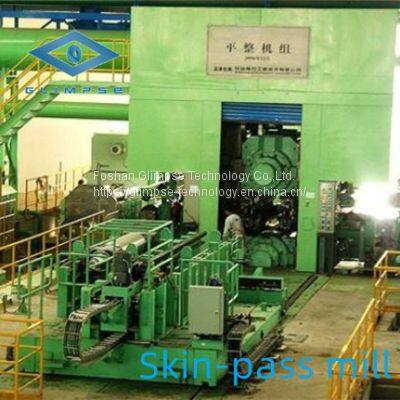

GLIMPSE stainless steel skin pass mills
The skin pass mill is a machine for adjusting the final mechanical properties, flatness, and surface of strip. A range of stainless steel skin pass mills is available for any type of applications for annealed and galvanized steel products, as well as stainless steel. These skin-pass mills are also available in a tandem version for double reduction for tin plate products.
The advantages of stainless steel skin pass mills provided by Glimpse technology is excellent flatness and perfect finish. Single or double-stand Skin-Pass Mills are placed in-line at the exit of continuous annealing and continuous galvanizing lines.
Main benefits of Glimpse stainless steel skin pass mills:
Tight strip elongation tolerances
Excellent flatness performance
High surface quality (roughness, peak count, low residuals)
Wet and dry skin-passing modes
High-speed roll changing
Stable rolling
2HI skin pass mill for stainless steel
Designed to provide the high degree of cleanliness required for stainless steel
High-performing roll polishing system to achieve a very bright strip surface
Double acting roll force cylinder for efficient and accurate roll control
Designed to provide easy access to all parts of the machine for safe and simple operation and maintenance
4HI skin pass mill
Designed for a variety of steel grades from very low to very high strength;
Used on continuous annealing and galvanizing lines, and can be coupled with a tension leveler;
Up to 1,880mm wide and speeds up to 1,000 m/min;
Detergent capture and filtering to minimize environment impact.
6HI skin pass mill
Applicable in continuous annealing lines to further improve flatness without a tension leveler
With two additional intermediate rolls, it can guarantee better flatness under any operating conditions. It is equipped with an intermediate roll shifting system to enhance operational flexibility on bending
