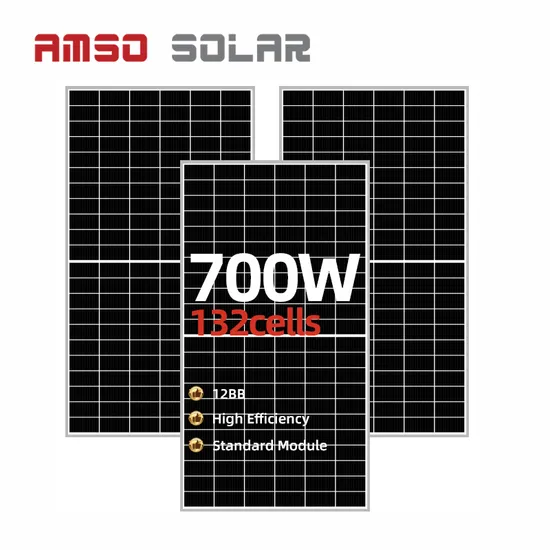

Chinese Factory Half Cell 700W Mono Solar Panel for Home and Industry

Product Description

Chinese Factory half cell solar module 500W 550W 600W 650W 700W Mono Solar Panel with 25 Years Warranty for Home and Industry use

Model Type	Power(W)	Number of Cells	Dimensions(MM)	Weight(KG)	Vmp(V)	Imp(A)	Voc(V)	Isc(A)
AS650S9	650	132	2384*1303*35	34.5	37.9	17.15	45.5	18.32
AS660S9	660	132	2384*1303*35	34.5	38.0	17.37	45.6	18.32
AS670S9	670	132	2384*1303*35	34.5	38.1	17.59	45.7	18.33
AS680S9	680	132	2384*1303*35	34.5	38.2	17.80	45.8	18.56
AS690S9	690	132	2384*1303*35	34.5	38.3	18.02	45.9	18.79
AS700S9	700	132	2384*1303*35	34.5	38.4	18.23	46.0	19.02
Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25ºC)
Temperature rating
Rated battery operating temperature				45±2ºC
Maximum power temperature coefficient				-0.4%/ºC
Open circuit voltage temperature coefficient				-0.29%/ºC
Short circuit current temperature coefficient				-0.05%/ºC
Limit parameter
Operating temperature				-40-+85ºC
Maximum system voltage				1000/1500VDC
Maximum fuse rated current				25A

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
Delivery Time	7-10 working days after receiving payment (should be decided according to quantity)
