Wood Stringer Pallet Block Making Machine, Pallet Nailing Machine

Product Description

Product Function

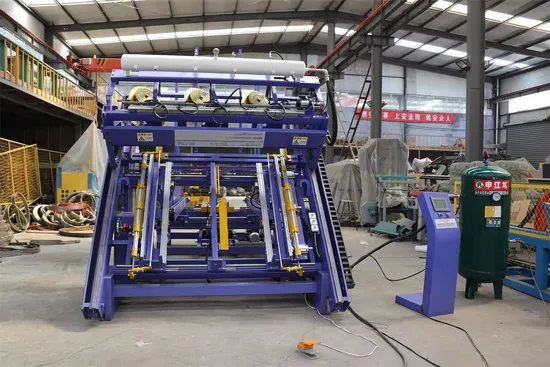

Pallet Nailing Machine
Automatic wooden pallet nailling machine mainly can apply for produce American stringer pallets and European block pallet.The automatic wood pallet nail machine equipment auto stacking platform , wood pallet lifting device and flip picking device .High Degree automation , smooth closely process , complete nailing and stacking in one time .
The whole machine adopts fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position is standard; compared to the domestic conventional production technology, multiple processes are completed at one time, which greatly improves the work efficiency.

Product Specification

Model	WW-1300
Wood pallet length	600-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	415v/380V/220V/ 2kw Servo motor
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Weight	2000kg
Size	Host machine 1660*1970*2217mm Stacking 2945*2054*1410

Features of Automatic Pallet Nailing Machine
Operation: The machine will auto clamping after the worker put the wood pallet bottom bean in machine, then put wood pallet plate, after automatic nailing.When complete it ,the work need flip the other side, put the plate in, then nailing it .
Operation program:Touch screen control , advanced programming, Feeding mechanism and nailing machine multi-axis linkage at the same time when working.it achieve fast and efficient nailing work.One more thing, it could switch different program basis on different material plate to produce non-standard pallet .
Automatic stacking: It will form aline with nailing machine,after nailing ,flip the wood pallet to stacking plat form .It will be
achieve the effect of automatic collect wood pallet and easy to transport. It save labor and operation time.
Option: basis on stacking platform,it could increase transport platform,achieve stacking 4-5stack.
*The equipments main parts all use international well-known brand , for example:BOSTITCH/ Max nail gun, Delta control, Airtac electrical appliances and so on,to ensure the stability of the machine operation.

Detail Photos

The complete wood pallet production line contains
pallet pier nailing ----pallet nailing &assembling----rotating----branding----charmfering----turning----stacking--conveyor storage
Pallet block connecting machine, also called pallet leg nailing machine for Euro wood pallet.
Connect the slats with block in advance for following nailing process.

Machinable size	800-1300mm
Nail gun	American Stanley 70 nail gun * 3
Wiring mode	220V voltage
Operating mode	Touch screen operation
Production mode	Manual feeding / automatic nailing pier

Main machine:
European wood pallet nailing machine, is suitable for European standard pallet(also called wood block pallet),whole board pallet.

Pallet type	European standard pallet, full board pallet
Nail gun	American Stanley 80 nail gun*3; 58 nail gun*3
Collect pallets:	Automatic palletizing (hydraulic, pneumatic)
Wiring mode	380V voltage
Operating mode	touch screen operation
Production mode	Manual feeding/automatic nailing/automatic palletizing
Processing range	800-1300mm adjustable

Pallet chamfering machine(optional):
Auto cut four sides of pallets into 45 degree bevel.

Machinable size	800-1300mm
Motor Power	8.8KW
Control mode	Integrated supporting system for pallet machine production line
Wiring mode	380V voltage
Operating mode	Touch screen control
Production mode	Automatic conveying and feeding/automatic corner cutting

Pallet turning machine(optional):
Turn the finished pallets to stacking machine.

Machinable size	800-1300mm pallet machine matching
Motor Power	1.5KW+0.75KW*2
Control mode	Integrated pallet machine production line
Wiring mode	380V voltage
Production mode	Pallet machine automatic line feeding

Pallet branding machine(optional):
Print the required logo on four sides of pallet.

Machinable size	800-1300mm
Branding Material	(customer provided)
Motor Power	0.75KW*2
Number of imprints	1-6 optional
Control mode	Integrated pallet production line
Wiring mode	380V voltage

Pallet stacking machine:
Load 20-25 finished pallets for whole stack.

Machinable size	800-1300mm pallet machine matching
Motor Power	1.5KW
Control mode	Integrated pallet machine production line
Wiring mode	220V voltage
Production mode	pallet machine automatic feeding

Package and delivery

Warrenty and After Service

1.One year guarantee from the delivery date of this machine under the normal operation of one shift per day
2.We will be responsible for the maintenance of damaged parts which is under normalsituation during warranty period, and all the round -trip courier transportation cost of damaged/repaired replacement parts in warranty period should be bornd by the buyer.Wearing parts are not included.
3.24 Hour technicial support by email or calling
User-friendly Englishi manual for machine using and maintaining.

---
