Basic Info.
Model NO.
JY-DDJF1-13/12-X
Number of Reflective Surfaces
Single-Side
Certification
CE, RoHS, TUV
Working Mode
Steady Light or Flashing (Optional)
Color Option
Red/White/Yellow/Green/Blue
Working Temperature
-20-60 ºC
Transport Package
60 PCS/Carton
Specification
104*104*23 mm
Production Capacity
40000/Month
Product Description
Product Parameters
Product Specification | Remark |

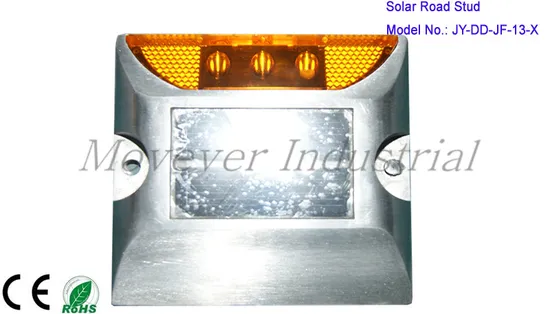

Description | Solar Road Stud /Deck Dock light (square shape) | 2 size |
Model Number | JY-DDJF1-13 / 23-X (New: JY-DDJFN-13 / 23-X) |
Product Dimension | 104*104*23 mm (New mode size: 114 x 110 x 23 mm) |
Power | Material | Mono-crystalline silicon solar cell,100mA |
Voltage | 2V |
Output max consumption | 0.2W |
Battery | Hi-Temp NI-MH battery,1.2V,600 mAh |
LED | Quantity | 2 / 3 pcs per side |
Color | Red/white/yellow/green/blue |
Frequency | 2Hz±20% flash or steady light |
Visible Distance | >800 m |
Working Time | 100h after fully charged (flash) |
Light Intensity | 6000~10000 mcd |
Starting Light Intensity | <500 Lux |
Main Material | Aluminum alloy |
Lifespan | 3 Year |
Working Temperature | -20-60 ºC |
Resist Compression | Up to 15 ton (statics) |
Ingress Protection | IP67 |
Net Weight | 320 g |
Packing | 60 pcs/carton / 39 x 29 x 27 cm |
Detailed Photos Production & Testing
Packaging & Shipping
Company Profile Movever Industrial located in Shenzhen, China, which is specializing in roadway safety products & luminous lighting product design service and manufacturing.
We keep learning forever, moving forever, Let's serve for you to be a comprehensive traffic safety, LED lighting solution provider.
we have below products range:
>Traffic road stud. >Traffic warning / flashing light >Traffic signage >Traffic signal light >Traffic controller >Traffic reflective material >Mobile traffic signal light >LED street light Trade Terms & Payment EXW, FOB, CFR, CIF is optional for your choice. Telegraphic Transfer (T/T), Letter of Credit, WU, PayPal are accepted. FAQ Question A: How do you control product quality? >Answer: We have IQC did random inspection and test when raw material was coming, IPQC did inspection and test of electronic performance for each production line, FQC did 100% full inspection for appearance & function before packing, OQC did random inspection as per latest AQL standard. Question B: What is your minimum order quantity and production lead time? >Answer: For all modes, we provide sample or sample order, take 3~5 days, for mass order, average lead time is 7~10 working days. for glass road block mass order, average lead time is 25~30 working days. Question C: How to control the delivery products are we need? >Answer: We will take picture for appearance & package and video for functions test for your approval before delivery. Question D: What is your after-sale services? >Answer: We will replace it free in guarantee period. Why choose US? We have professional R & D team. We have high efficiency management system, Experienced process standard to different countries (North America, Europe, Australia, Africa,etc.) We have workshop to control production speed and product quality, and more than 9 years solid manufacturing experiences. Application
>>
