CO2 Foaming PS Skirting Moulding Extrusion Line/Production Line

Product Description

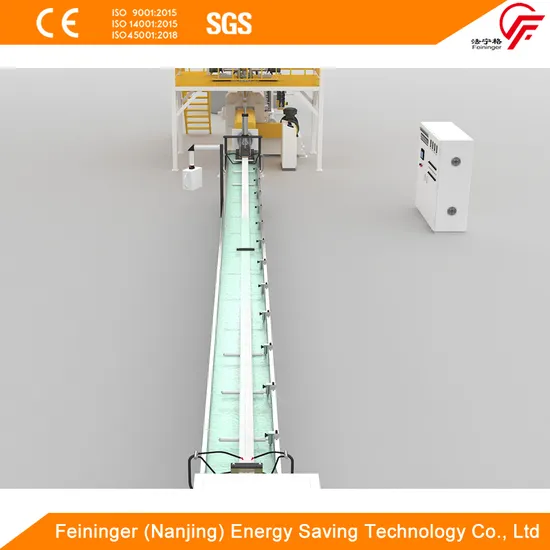

Feininger XPS foaming profile extrusion line is mainly used to produce profiles from GPPS foam resin. The profiles are widely used to make photo frame, optical frame, door frame board, skirting board and wood-like molding, etc.
However, Feininger PS skirting line production machines are different from traditional chemical foaming. It adopts supercritical CO2 physical foaming, which greatly reduces the product density and makes the product more environmentally friendly.
Specification

Model	Extruder Type	Length/ Diameter	Foam output (kg/hr)	Blowing Agent (Gas)	Thickness of Profile (mm)	Width of Profile (mm)
SS-75T	TE75	22-26	20-80	100% CO2	5-15mm	25-150mm
SS-85T	TE85	22-24	40-150		8-20mm	40-220mm
SS-95T	TE95	22-24	60-250		8-20mm	65-300mm

Advantages
1. Environment Protection + 100% Safe
Feininger PS baseboard making machines are different from traditional chemical foaming. Our baseboard extrusion line adopts supercritical CO2 physical foaming, which greatly reduces the product density and makes the product more environmentally friendly.
2. High Performance Cost Ratio
With our PS skirting board extrusion machine, you can manufacture polystyrene cornice moulding, PS photo frame, PS baseboard, etc.
PS Skirting Line Frame Making Machine Production Process
1. Add the raw materials to be processed in a certain proportion and pour it into the mixer.2. After regular mixing and homogenizing, they are transported to a quantitative feeder bin by a feeder.3. The feeder is evenly fed to the outlet of the main extruder according to the addition amount set by the customer.4. The raw material is conveyed to the heat exchanger by the high-temperature screw of the main engine, and the heat ishomogenized.5. Then the material is conveyed to the extrusion equipment after the die, in which carbon dioxide foaming agent is injected quantitatively.6. The material model of high-temperature products made by mould is formed after cooling into a two-stage shaping jacket.7. Then the material is cooled through a water channel.8. The products are drawn to a tractor and cut with a fixed length.9. Finally, it is formed into a qualified product and packaged and sold.
Features of PS Skirting Board
(1. Polystyrene skirting board density coefficient, good impact resistance, have the ability to change and respond by the shape of the external impact force buffering;
(2. With independent bubble structure, a small area of damage will not affect the entire surface of the wall;
(3. The surface low water absorption, good anti-permeability, can effectively avoid the damp moldy walls or fall off the wall question;
(4. The temperature is not affected. At high temperature, polystyrene baseboard is not due to high temperature melt flow, it will not happen because the temperature is too low and low temperature embrittlement phenomenon;
(5. High density PS skirting board is recyclable material that can be recycled, the degree of recycling plastics is the highest.
Successful Case
Shipping and Loading
Certification
Exhibition
Company Profile
FAQ
Question 1.
How many meters produce per minute of the xps cornice machine?
Different densign and size, the capacity is different, for 45mm width cornice, about 15-20meters per minute, for 58mm width cornice, about 12-15 meters per minute, for 130mm width cornice, about 6-8 meters per minutes.
Question 2.
How many people need for the whole production line?
2 workers needed for the whole line. Our line is automatic, including automatic feeding system! the manual process is for packing.
Question 3.
How many densign could be produce with this machine?
We have 20 standard moulds. You also could produce any densign your market required just by providing your moulds design, then we make it for you!
Question 4.
Which foaming agent (gas)could be used in this line?
100% CO2 SUPPORTED! In China, only we can do this technology!

Question 5.
What's the density of the cornice this machine produced?
The normal density is 200-300kg/m3(much lower than traditional chemical foaming).

Question 6.
What's the raw material?
GPPS (General Purpose Polystyrene).

Question 7.
Whether the cornice could be anti-flaming or not? Whether the cornice could be antioxidant or not?
Yes! It could be anti-flaming and antioxidant by mixed special material.

Question 8.
Do you have and supply the raw material? If not, could you find the raw material for us?
Yes, we could find material supplier for you, for the whole production line, it need about 1x40GP + 1x20ft container for shipping, and we could take some material for you, about 2 to 3 Tons .

Question 9.
How about the shipping, packing and payment ?
It need about 1x40GP + 1x20ft container ,standard seaworthy packing. The payment is by TT .

---
