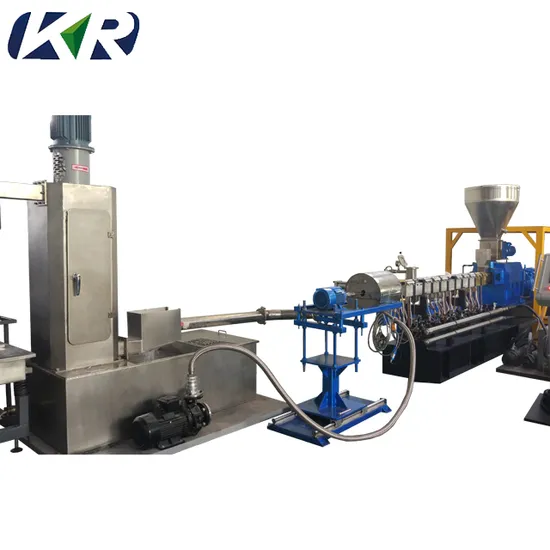

Co-Rotating Parallel Twin Screw Extruder / Color / Filler Masterbatch Extruder / Granules Machine

Product Description

Production Description
The machines are designed by suing the "toy bricks" principle, the screw configuration, barrel setup,
L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be
optimally adjusted according to different materials properties and requirements in consideration of the
versatility in each general applications
Technical Data

Mode	Diameter (mm)	L/D	speed (r/min)	Motor power (kw)	Torque (N.m)	Capacity (kg/h)
TSE-20	22	32-44	600	5.5	43	0.5-10
TSE-30B	31	32-48	600	15	119	5-40
TSH-35B	35.6	32-52	600-800	15-22	119	30-70
TSE-40B	41	32-52	600	45-55	437	90-150
TSH-40B	41	32-52	600	45-55	437	150-220
TSE-50B	50.5	32-52	500	45-55	430	180-270
TSH-52B	51.5	32-60	600	90-132	682	270-400
TSE-65B	62.4	32-64	600	90	716	250-360
TSH-65B	62.4	32-64	600-800	110-160	875	350-500
TSE-75B	71	32-64	600	132	1050	350-500
TSH-75B	71	32-64	600-800	200-250	1365	600-800
TSE-95B	93	32-64	600	315	2560	800-1200
TSH-95B	93	32-64	600-800	400-450	2506	1200-1600
TSE-135	133	32-64	500	550	7162	1500-2250

Application
a. For high filling masterbatch : PE/PP/EVA ,+ Caco3, Tio2, Talc,Carbon Black , etc;
b. For fiber reinforcement: PP/PA/PBT/ABS/AS/PC/POM/PET +glass fiber, carbon black ;

PE + 85% Caco3;
Including High speed mixer for mixing PE+85% Caco3+ addictives; Screw loader for loading materials ; Extruder for extrusion; Air cooling hot face cutting pelletizing line for cooling and cutting ;
PP +70% Caco3 ;

High speed mixer for mixing PE+ Caco3+ Addictives; Screw loader for loading materials , Extruder for extrusion; Water ring hot face cutting pelletizing line for cooling and pelletizing ;


Glass fiber reinforce : PP/PA/PA66/PA6+ Glass fiber with side feeding
The Characteristics of The TSE-75 polyester fiber making machines
1.The gearbox
· New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.
· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.
· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.
2.The feeding system
· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.

3.Screw
· The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.
· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.
4.The barrel
· Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.
· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.
5.The heater
· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.
6.Pelletizing
· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.
Our service
Before-sale
Introduce products in details
Recommend suitbale solution
Offer test

During manufacturing:
Provide layout and engineering conditions
Offer screw plan and related documents
Inform the project processing status
Insure the product designed in accordance with technical document

After-sale:
Provide installation,commissiong and training
Offer spare parts
Provide necessary technical support and update information

1.Quality guaranteed

2.Support factory visit

3.Technology supports
FAQ
1. Q: How can we go to your factory?

R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,



1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company



2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company



All our clients, from domestic or abroad, are warmly welcome to visit us!



2. Q: Why chose us?

R: 1)Quick reply. Once we received the inquiry from ******, we will reply you within 24hours.

2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.

3) Before delivery, the machine will be tested to ensure every part is ok.

4) Wooden case package to ensure no damage during shipping.



3.Q:What is the payment?

R: 1) T/T payment; 2) LC;

---
