New Automatic Metal Bending Machine CNC Servo-Hydraulic Press Brake From Accurl

Product Description

Accurl CNC Servo Electric Press Brake Manufactures
Product Description

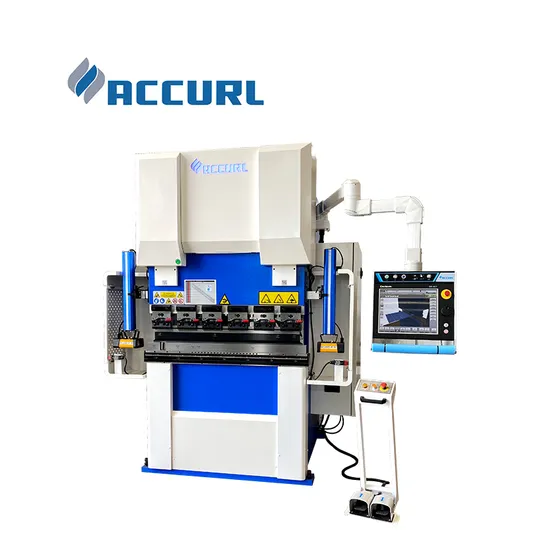

Sychro Electric CNC Press Brake eB Icon
ACCURL® eB Icon is a fully electric machine.Using SYNCHRO technology that controls 2 axes during the bending, thus being able to compensate the axes Y1 and Y2 independently.
This electric press brake is inte-grated with the highest technology coupled with a friendly use. This model is a top machine that guar-antees high precision and competitiveness.Detailed Photos
CNC CONTROL SYSTEMCNC BACKGAUGEACCURL press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.

BGA	X	R	Z1	Z2	X2
Stroke(mm)	750	150	UNDER REQUEST	UNDER REQUEST	190
Speed(mm/s)	500	170	2000	2000	200
Precision(mm)	+0,02	+0,05	+0,05	+0,05	+0,02
Type of motor	BRUS HLESS	BRUS HLESS	BRUS HLESS	BRUS HLESS	BRUS HLESS
Mechanical system	SCREW	SCREW	RACR	RACR	SCREW

MACHINES BLOCKeB Icon series electric press brake features a rigid frame for minimum deflection under the load.ultrasonic controlled & ST‐44 material. Machine welding is made by welding aparatus & welding robots. After the welding,we make
stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy,. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.The Servo Electric Press Brake Provides Enegry Saving Up to 50%ACCURL® eP series press brake is a compact size, fast, accurate, non-hydraulic bending solution.
The ram is driven by a combination of heavy duty servo motor and a high performance ball screw. This innovative machine concept
combines productivity, accuracy,flexibility and reliability with high respect to ecological aspects -we call this concept "Green Means".SERVO-ELECTRIC TECHNOLOGYThe Servo is flexiable, reliable and advance bending machine. Servo Electric Press Brake combines high accuracy, flexibility and reliability. This concept offers low power consumption , less maintenance and no hydraulic oil and components for operation.PRESS CONTROL SAFETY SYSTEMThe PCSS-A is a programmable safety controller designed to improve the performance and safety of press brakes.It provides flexibility for the press brake manufacturer and simplifies the design process by combining all related control, safety and monitoring functions into a single system and eliminates the need for complex integration of third party components and software.PCSS-A provides an optimum balance of functionality and performance with reduced build cost.LAZERSAFE OPTICAL SAFETY GUARDSPerformance without compromise. ACCURLuse LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivi- ty.Designed for use with Lazer Safe's PCSS A Serice, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards(CE Certified Category 4 Safety Controller with integrated). View More Products,click here...
