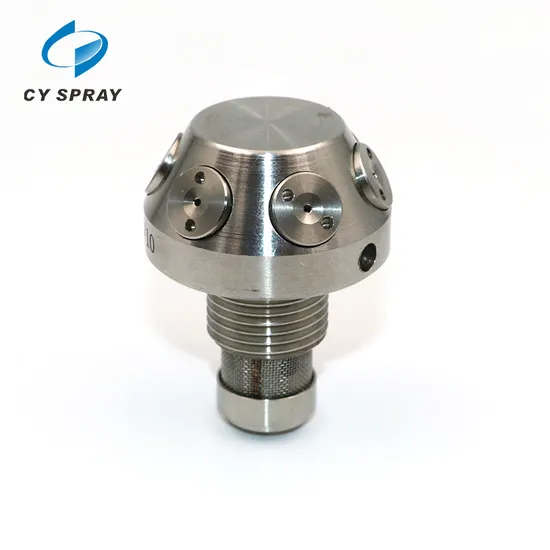

High-Performance Misting Nozzles for Garden and Patio Use

US$40.00
50-199 Pieces
US$35.00
200-499 Pieces
US$30.00
500+ Pieces

Basic Info.

Alarm Valve Type
Wet Alarm Valve
Automatically Opened and Closed Repeatedly
Can Automatically Opened and Closed
Open Fire Sprinkler System Type
Water Spray System
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Dry Alarm Valve Type
Enclosed Type
Wet Alarm Valve Structure
Butterfly Valve Type
Nozzle Flow Coefficient
80
Deluge Valve Type
Diaphragm Type
Product Name
Fire Water Fogging Nozzle
Max. Working Pressure
140bar
Advantage
0-50um Drop Size,Finest Spray
Application
Fire-Fighting, Fire-Protection
Material
Ss
K Factor
0.5-3.5
Spray Shape
Flat Fan ,Round
Certificates
ISO 9001, ISO14001
Brand Name
Cy Spray
MOQ
20PCS
Trademark
CY
Origin
China
HS Code
84249090

Product Description

Application:
Our state-of-the-art water mist nozzles are expertly engineered to tackle and swiftly extinguish hazardous solid surface fires in confined spaces. They are equally effective against combustible liquid fires and are adept at handling fires involving energized equipment, providing peace of mind in critical situations. These versatile nozzles find their primary use in a wide range of locations including libraries, archives, and towering high-rise buildings. They are indispensable in production workshops, cable tunnels, oil-immersed transformer rooms, boiler rooms, and electronic information system rooms. Additionally, they are ideal for safeguarding generator rooms and numerous other essential sites.

Performance data:
Model Code
 K factor
 Working
pressure
 Flow rate(L/min)
 Max. Distance between nozzles
 Max fit height
 Qty of
Nozzles tips
CY-TQ0.3/10
 0.3
 10-14Mpa
 3.0-3.5
 3m
 5m
 5/6/7
CY--TQ0.5/10
 0.5
 10-14Mpa
 5.0-5.9
 3m
 5m
 5/6/7
CY--T0.7/10
 0.7
 10-14Mpa
 7.0-8.3
 3m
 8m
 5/6/7
CY--T0.9/10
 0.9
 10-14Mpa
 9.0-10.6
 3m
 8m
 5/6/7
CY--T1.0/10
 1.0
 10-14Mpa
 10-11.8
 3m
 8m
 5/6/7
CY--T1.2/10
 1.2
 10-14Mpa
 12-14.2
 3.5m
 10m
 5/6/7
CY--T1.5/10
 1.5
 10-14Mpa
 15-17.7
 3.5m
 10m
 5/6/7
CY--T1.7/10
 1.7
 10-14Mpa
 17-20.1
 3.5m
 10m
 5/6/7
CY--T2.0/10
 2.0
 10-14Mpa
 20-23.7
 4m
 10m
 5/6/7
Operating Temperature/Colour
 Brand
 Model Code
 Diameter
 RTI[sqrt(ms)]
57ºC2/Orange
68ºC/Red
 JOB
 F2/S2
 2
 19
57ºC/Orange
68ºC/Red
 JOB
 F2.5
 2.5
 24
