Hydraulic Lifting Telescopic Boom Outrigger Mobile Work Inside House 360 Degree Rotatable 1 5 8 T Small Mini Construction Heavy Duty Truck Crawler Spider Crane

Product Description

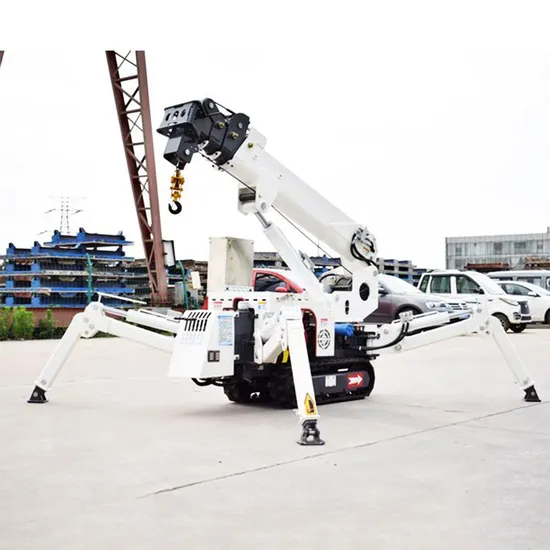

Our Advantages Introduction of 8T Micro Mini Telescopic Crawler Cranes Lift Small Spider Crane Introducing the 8T Micro Mini Telescopic Crawler Cranes, designed to lift and transport with ease in limited spaces. These spider cranes are perfect for hoisting and transporting landscape trees, making them versatile in various applications.
Features of Spider Crane: Spider crane is ideal for small spaces, allowing for efficient operation. Full rotation, boom type, and full hydraulic transmission make the spider crane highly maneuverable. Main boom consists of 4-5 sections, with a U-shaped structure for added stability. The single-stage telescopic oil cylinder and wire rope mechanism enable synchronous expansion and contraction of the main boom. Double insurance of marking line and alarm ensures safe and controlled boom telescopic use. Equipped with radiators, the cranes are suitable for high-temperature work during summer. Spider cranes are compact yet capable of heavy lifting, surpassing ordinary cranes. They excel in operating environments such as basements and workshops where regular machines cannot enter. Additionally, they can easily navigate rooftops, indoor spaces, shopping malls, and densely populated areas where tower cranes are impractical.
Experience the power and versatility of the 8T Micro Mini Telescopic Crawler Cranes, brought to you by Shandong China Coal Construction Machinery Co., Ltd.
Product Parameters 8T Micro Mini Telescopic Crawler Crane - Lift Small Spider Crane Introducing the 8T Micro Mini Telescopic Crawler Crane, designed by Shandong China Coal Construction Machinery Co., Ltd. This hydraulic knuckle telescopic boom outrigger mobile work inside house crane is capable of a 360-degree rotation and has a maximum lifting height of 17m. With a maximum load capacity of 8t, this heavy-duty truck crawler spider crane is perfect for various construction projects. Experience the convenience and efficiency of this mini spider crane. Contact us for on-line or video after-sales service.

Specification		1.2t	3t	5t	8 t	12t	14t
Maximum working radius		5m × 0.3t	7.8m × 0.2t	15m×0.2t	16m × 0.2t	22×0.6t	23×1.5t
Maximum ground lift		5.8mX0.8t	9.2mX0.8t	16mX0.8t	17mX0.9t	23.5mX0.9t	14.5mX2t
winch	Hook up speed	0-8m/min	0-8m/min	0-10m/min	_0- 10 m/min	0-10m/min	0-10m/min
	Wire Rope Specifications	Φ8mm × 35m	Φ8mm×45m	Φ 10mm × 80m	Φ10mm × 120m _	Φ12mm×80m	Φ12mm×80m
Telescopic device	Boom form(U-shaped high-strength manganese)	4 -section boom ,	5 -section boom ,	5-section lifting arm	5 -stage boom	6 stage boom	5-section boom
	Boom length/time	1.7 m- 5 m/2 2 sec	2.8 m- 8.2 m/2 2 sec	4m-15m	4.5m-16m	5m-22m	5.5m-23m
undulating device	Boom angle/time	0-7 5 °/13sec	0-7 5 °/13sec	0-75°/13sec	0-7 5 °/13sec	0-75°/13sec	0-75°/13sec
gyratory device	Rotation angle/speed	0-360° (continuous)/60sec
landing leg	Outrigger Action Form	Manual unscrewing + hydraulic automatic support (two legs) Oil pressure automatic
	Maximum extension (mm) Side*Front*Rear	3120x2950	4470x3940	5600*5560*5000	6400*6500*5400	7400*7000*6000	7400*7000*6000
walking device	way of walking	Hydraulic motor drive, two-speed
	Walking speed	0-2.5km/h	0-2.5km/h	0-5.5km/h	0-5.5 km /h	0-5.5km/h	0-5.5km/h
	Gradeability	20° (36%)	20° (36%)	20°(36%)	20° (36%)	20°(36%)	20°(36%)
engine	Type	Electric / Diesel /gasoline
	Brand	Chinese Brand/ Japan Brand / American Brand / EPA / Euro V
	Start method	Electric start	Electric start	Electric start	Electric start	Electric start	Electric start
	Startup performance	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C
	fuel/volume	Gasoline / 8 L	Diesel / 8 L	Diesel / 45L	Diesel / 45 L	Diesel /55L	Diesel/60L
	battery capacity	12v 45AH	12v 45AH	24v 45AH	24v 45AH	24v 45AH	24 v 45 AH
	Fuel consumption	274g/kW-h	274g/kW-h	230g/kW-h	230 g/kW-h	230g/kW-h	230g/kW-h
operating system	Type of operation (jib/outrigger),	Manual travel Manual operation, manual walking + remote control (optional)
The standard configuration		Diesel engine and electric motor
Vehicle size L*W*H mm		2260*600*1470mm	3450*950*1700mm	4950*1560* 2235mm	5010*1600*2200mm	6500*2000*1700mm	6050*2000*2300mn
Machine weight		1200kg	2400kg	6300kg	7150kg	11.5 ton	15ton
