Product Description
Product Description

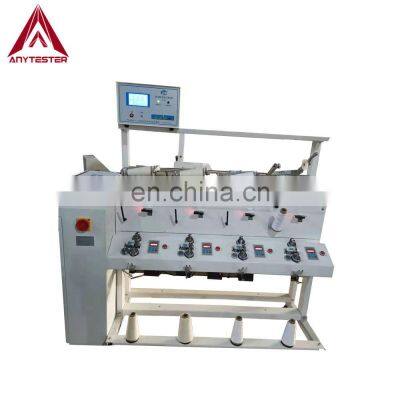

Product DescriptionAT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering. SpecificationModelAT209ANumber of spindles4, 6, 12, 24, 36, …, 108, 120Grooved drumO/D82mmPitch: 2.5×147Take-up package3º30´, 4º20´,5º57´,9º15´or cylindricalMax. package diameter¢280mmMax. length setting999999 meter, electronic settingDrive modeDC brushless motor with adjustable speedMax. winding speed1100meter/minuteYarn-guiding traverseStandard 147mmRadial anti-aliasing systemMicrocomputer controlRated power60W/spindle at max. speedPower supplyAC220V 50Hz, single-phaseDetails & Features1. Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle; 1. Automatic length setting up to 999999 meter;2. DC brushless motor to independently drive each grooved drum with adjustable winding speed;1. Optical yarn breaking detector for each spindle; 1. Microcomputer controlled anti-aliasing;2. Optional knotter and optional electronic yarn cleaner;3. Optional bobbin clamps for different bobbins;NOTE-Please inform us the bobbin type that you use before order, so we can supply the right bobbin for you.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
