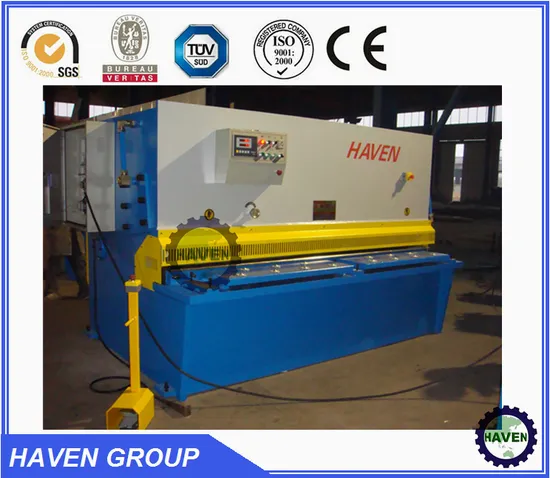

CNC Hydraulic Swing Beam Shearing and Cutting Machine QC12K-20X4000

Product Description

CNC hydrualic swing beam shearing and cutting machine
Standard Facilities:
1. ESTUN E21 NC control + Frequency inverter control back gauge and shearing times
2. Front support arms with stopper and measure scale
3. Main electric components are from SIEMENS or SCHNEIDER
4. Hydraulic seals are from NOK, Japan
5. Hydraulic valves are from OMEGA
6. Hydraulic pump is from SUNNY brand (USA venture in China )
6. Main motor is from SIEMENS brand
7. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity
8. Hydraulic top-drive, steadiness and reliability
9. With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet
10. With motor-driven back gauge and counter device
11. CE standard back-safety curtain

2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main functions:
1. The machine frame is welded construction with steel plate, and stress is eliminated by vibration. with high strength, stable performance, easy operation and convenient maintenance.
2. As the cutting beam of machine has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.
3. With the help of hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator ( Nitrogen cylinder ).
4. Stepless adjusting is available for the stroke of knife beam for different length plate shearing.
5. The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding.
6. It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.
7. Motorized adjusting and manual adjusting for the back gauge.

Parameter	Shearing Thickness(mm)	Shearing Width(mm)	Shearing Angle	Number of stroke	Backgauge (mm)	Motor (kw)	Net W. (kg)	Overall Dimensions(mm)
4*2000	4	2000	1° 30'		600	4	3500	2550*1430*1560
4*2500	4	2500	1° 30'		600	4	4000	3100*1430*1560
4*3200	4	3200	1° 30'		600	5.5	5300	3840*1680*1670
6*2500	6	2500	1° 30'	18	20-600	7.5	6000	3040*1616*1620
6*3200	6	3200	1° 30'	14	20-600	7.5	7200	3840*1610*1620
6*4000	6	4000	1° 30'	10	20-600	7.5	10000	4640*1705*1700
6*6000	6	6000	1° 14'	10	600	18.5	17000	6600*1950*1980
8*2500	8	2500	1° 30'	14	20-600	11	6.500	3240*1610*1620
8*3200	8	3200	1° 30'	10	20-600	11	7.800	4010*1610*1620
8*4000	8	4000	1° 30'	8	20-600	11	11000	4680*1705*1700
8*6000	8	6000	1° 30'	8	20-800	18.5	19000	6880*2210*2890
10*2500	10	2500	1° 48'	12	20-600	15	8000	3350*2050*1950
10*3200	10	3200	1° 48'	10	20-600	15	10000	4050*2050*1950
10*4000	10	4000	1° 30'	8	10-800	18.5	12500	4850*2300*2200
10*6000	10	6000	1° 30'	8	20-1000	30	20000	7020*2580*3280
12*2500	12	2500	1° 30'	12	10-800	18.5	11000	3320*2050*2230
12*3200	12	3200	1° 30'	10	10-800	18.5	12500	4020*2050*2230
12*4000	12	4000	2°	8	10-800	22	15000	4850*2400*2200
12*6000	12	6000	1° 30'	6	20-1000	37	23000	7020*2680*3380
12*8000	12	8000	1° 30'	4	20-1000	45	33000	9020*2680*3380
16*2500	16	2500	2° 30'	8	10-800	18.5	15000	4850*2400*2200
16*3200	16	3200	2 ° 30'	7	10- 800	22	18000	4100*2060*2010
16*4000	16	4000	2°	6	10-800	30	23000	4900*2400*2250
20*2500	20	2500	2°	6	10-800	37	16000	3440*2088*2570
20*3200	20	3200	2°	5	10-800	37	23000	4100*2350*2710
20*4000	20	4000	2° 30'	4	10-800	37	30000	4920*2400*2790
25*2500	25	2500	3°	5	40-1000	45	19000	3480*2410*2690
25*3200	25	3200	3°	5	40-1000	45	26000	4180*2410*2690
25*4000	25	4000	3°	5	40-1000	45	33000	4985*2410*2690

---
