High-Speed Stainless Steel Copper Wire Weaving Braiding Machine for Flexible Metal Hose Rubber Hose Industrial Hose Hydraulic Hose High Pressure Hose

Product Description

High-Speed Stainless Steel Copper Wire Weaving Braiding Machine for Flexible Metal Hose Rubber Hose Industrial Hose Hydraulic Hose High Pressure Hose

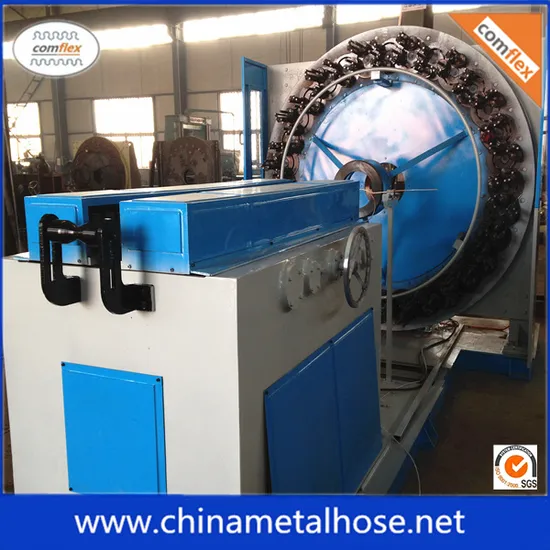

Pictures of braiding machine:
Machine parameters:
We manufacture all kinds of horizontal wire braiding machinery in different sizes, they are 16, 20, 24, 36, 48, 64, 72, 96,112,128 spindles.
The wire braiding machines we can make as follows:
Wire diameter: 0.3mm to 0.8mm
No. Of spindles: 16 to 128 carrier braiding machine
ID of the braids: 4mm to 500mm
Material of wires: Stainless steel, galvanized carbon steel, copper wire
Application: Cable manufacturing, metal and rubber hose manufacturing industry
Technical data sheet:

Steel Wire Braiding Machine

The wire braiding machines we can make as follows: Wire diameter:0.3mm to 0.8mm No.of spindles:16 to 112 spindle braiding machine ID of the braids:4mm to 600mm Material of wires:stainless steel,galvanized carbon steel, copper wire *For details please download the catalogue in PDF format.

Description	Braiding Diameter (mm)	Carrier Rotation Speed (r/min)	Braiding Pitch (mm)	Braiding angle	No. of carrier
16-carrier wire braiding machine	4-10	24.80	4-22	54°44"	16
20-carrier wire braiding machine	6-16	19.80	13-29	54°44"	20
24-carrier wire braiding machine	10--31	14.25	22-69	54°44"	24
36-carrier wire braiding machine	15--45	10.00	33-100	54°44"	36
48-carrier wire braiding machine	30--75	7.25	66-166	54°44"	48
64-carrier wire braiding machine	51-110	4.56	67-240	54°44"	64
72-carrier wire braiding machine	80-150	4.25	170-330	54°44"	72
96-carrier wire braiding machine	150-400	2.75	240-750	54°44"	96
128-carrier wire braiding machine	180-500	2.09	500-1300	54°44"	128

Braiding Details:

Package And Delivery:
FAQ
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you correct machineries:
1.What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..

---
