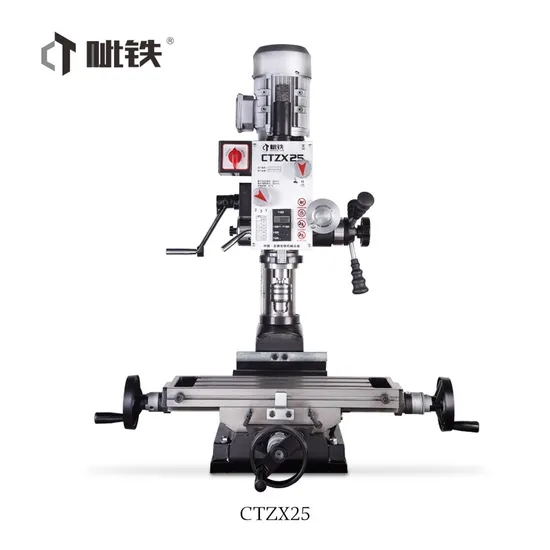

Ctzx25 Belt Head Cheap Drilling and Milling Machine with

US$1,030.00
1-4 Sets
US$989.00
5-9 Sets
US$948.00
10+ Sets

Basic Info.

Model NO.
CTZX25
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
760*400*1120mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 25mm
Max.milling capacity 52mm
Max.vertical milling capacity 16mm
Table size 520X160mm
X spindle travel 290mm
Y spindle travel 140mm
Spindle taper MT3
Spindle travel 85mm
Distance from spindle to column guide rail 203
Distance from spindle end to table surface 445
Spindle speed range/grade 95~1420r/min
Motor Power 750w
Net weight/gross weight 132KG/150KG
Package Size 680x680x1030mm
