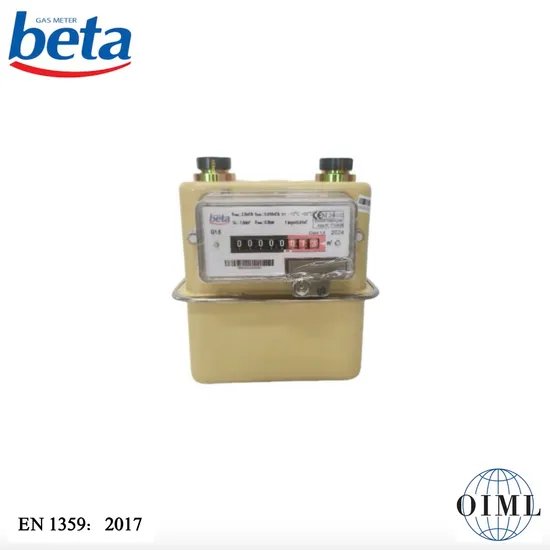

G1.6 Mechanical Diaphragm Gas Meter Anti Back Flow

Product Description

Product Description
NGS series diaphragm gas meter is designed to measure accurately volumes of natural gas, LPG and all non-corrosive gases.
The case of NGS series gas meter is made through die-casting by using the high-quality steel. The measuring unit is injected by using the import engineering plastic. The rotating valve with 360 degree rotation has smaller friction coefficient and better stability, more strength anti-adhesive of impurity in gas, higher sensitivity which design ensured the products quality. The valve and bottom are made of advanced Phenol-formaldehyde synthetic resin with stronger abrasion resistance.
The diaphragm is made of top quality material has been tested 3 million bending test and its service life more than 20 Years. The unique design makes smaller pressure loss, and the performance is better than the international standard mentioned as 200Pa.

ITEM		MODEL
		G1.6(S)	G2.5(S)	G4(S)
Nominal Flow Rate		1.6	2.5	4
Max. Flow Rate		2.5	4	6
Min. Flow Rate		0.016	0.025	0.040
Total Pressure Lose		≤200 Pa
Operation Pressure Range		0.5~50 kPa
Cyclic Volume		1.2 dm3
Permissible Error	Qmin≤Q<0.1Qmax	±3%
	0.1Qmax≤Q≤Qmax	±1.5%
Min. Recording Reading		0.2 dm3
Max. Recording Reading		99999.999 m 3
Operation Ambient Temperature		-25~+55ºC
Production standard		EN1359 & OIML R137
Service Life		20 Year
Connection Thread		NPT 3/4 or by customer

Detailed Photos
