Crystal glass lamp pendant pendant three head semi-automata
Model 810501999 Model ZJ-03T

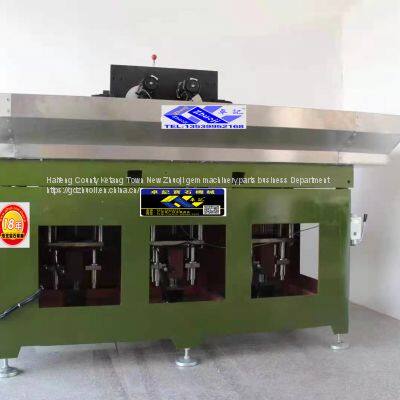

Zhuoji CNC surface cutting machine
CNC type row mill referred to as row machine, is the hand microcomputer control of the engraved gem automatic processing equipment, processing 60MMX80MM round ball can be processed 5 grains (processing quantity size and size).
Mill motor driven by a millstone, the Angle of the gem by the pendulum Angle of stepper motor and integral lifting step motor to cooperate to complete, it's on the corner of the gem from the Angle of stepper motor drive LvPai worm, worm drive the worm gear stick stone rotation, in order to raise the processing quality of stones, LvPai added a millstone center moving back and forth stepper motor
Features:
Two grinding assembly a polishing assembly, coarse grinding, fine grinding, polishing one
The precision of flatness is much higher than that of other machines, which is basically controlled within 0.003.
Three head machine good or bad, the most key is the flatness of the three spindles and the precision of the whole machine operation.
Application: Used for cutting and polishing glass lamp pendant
Finished shape: processing all kinds of round ball, water drop, square, egg, pear, triangle, denier, square, heart, horse eye, small star anise, fat triangle, flat surface, rectangular, etc
Processing quantity :20 hours 76MM is 80 pieces, 50MM20 hours 150 pieces (practice subject, only for reference)
Processing size range: 20MM to 80MM
Suitable stone material: stone, glass,
Suitable for 580 MM diameter sand disc
Aluminum row length :420MM
Accessories/Tools: ball glue machine + aluminum row + resin plate 580mm+ polishing disc 580mm(additional calculation)
Technical parameters:
Input voltage: AC380V
Motor power: 3x5.5 kW
Motor speed: 1500 R/min
Dimensions: length 25000mm x width 1200mmX height 1400mm
Stepper motor
>>
