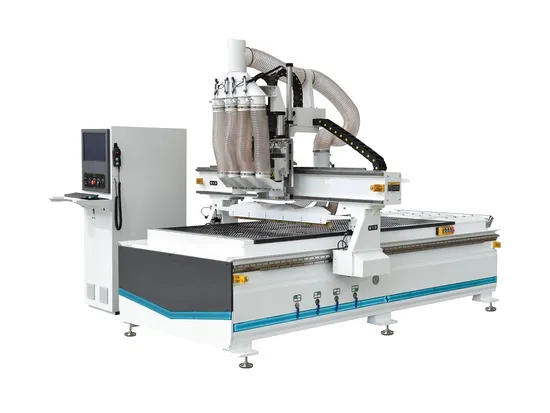

4 Heads CNC Woodworking 3D Cutting Machine

Product Description

CNC Woodworking Machinery 4 spindles NM-484
1) It can save time for changing less than 4 cutters.
2) stable structure, heavy type machine body.
3) double work position for your choice.
Parameters:

Model	NM-484
Working area	1220mm*2800mm
Spindle power	6KW *4 pcs.
Vacuum pump	5.5KW / 7.5KW
Controller	Taiwan Syntec /NC studio/Taiwan LNC
Motor	Servo motor 1.5KW
Inverter	7.5KW
Rail	Taiwan Linear rail 25mm

Features: . Model:1325 Woodworking CNC Router . The lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief to reduce residual stress;
Ensure excellent stability,bot easy to be deformed. . The major machine body makes the stability and no shacking in high speed. .XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy. . The professional mechanical design, scientific structure and generous appearance. .XYZ axis use antidust system, prevent dust during working, make sure the long lifespan of spare parts. . High quality driver motor, spindle motor, cables, inverters, etc. .Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application: 1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products. 2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould 3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.
Optional Adding double pressure roller
The machine chooses to install double pressure roller, the purpose is to solve the problem of running board caused by deformation when cutting 3-5mm thin plate. Adding pressure roller can prevent running board, easy cutting, and prevent the plate deformed by moisture when cutting. The phenomenon of running the board.
Double station
When the double station model is selected, the production efficiency can be improved. When the front station is working, the post-station is labeled, diverted, and changed, and the work is repeated. Both front and rear workstations can process 1220*2440mm standard plates, and can also process 1220*2800mm large plates to meet the demand for cutting large plates such as large ceilings and adapt to market trends.
Automatic loading and unloading system
The fully automatic loading and unloading machine can realize on-button automatic feeding, positioning, processing, cutting and other processes, which can reduce the labor of workers while improving production efficiency, and can also add automatic labeling function to further improve efficiency.

---
