Product Details
Product Description
Product Description

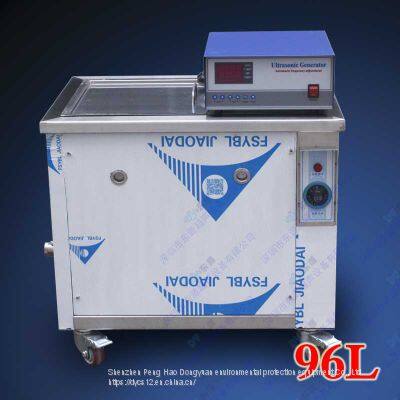

360L 264L 175L Industrial Ultrasonic Cleaner 100L 50L 40L Industry Circuit Printhead DPF Block Parts Engine Cleaning Machine
1, material: industrial ultrasonic cleaner produced by using 304 # stainless steel, beautiful and easy, convenient and practical. If need to use some cleaning process acid or alkali washing, if acid-base need to use 316 # stainless steel, high concentration of acid and alkali side need with acid-proof alkaline can higher titanium alloy, or hartz alloy production.
2, cleaning frequency: The Ulttrasonic cleaner configuration cleaning frequency for 28 KHz default factory delivery, in accordance with the requirements of different cleaning processes, and for the protection of product surface such as purpose, can be customized, such as: 25 KHz, 40 KHz, 68 KHz special frequency, etc. (cleaning frequency is lower, said the more aggressive cleaning rough, more suited to the product surface besmirch, on the surface of the product is not high, or after cleaning and surface treatment of artifacts, if wash glass and ceramics with low frequency is fragile products, such as surface side can cause damage or break the product to product surface, this kind of situation will need to clean with high frequencies; the higher the frequency of cleaning, said efforts to clean the softer, suitable for cleaning precision component, glass, ceramic, solar wafers, etc).
3,Tank heating: standard heating single tank ultrasonic cleaner adopt configuration cast aluminum heater, efficient, reliable and easy to maintain, and effectively prevent the leakage of risk, DYS - 1012 heating for 3 kw, DYS - 1018 heating heating for 3 kw, DYS - 1024 kw, DYS - 1030 heating for 4 to 5 kw, DYS - 1036 is 6 kw, DYS - 1048 heat for 6 kw; The heater power to 220 v power supply. Its special configuration can according to customer's actual need to match. If you need to clean with flammable solvents side carefully using heat.
4, ultrasonic generator: generator power supply voltage are: AC 220 v, 50 Hz other international voltage need to make to order. The plug standard three pin plug with ground wire in China.
Lose power: DYS - 1012 ultrasonic power: 600 W,
DYS - 1018 ultrasonic power: 900 W,
DYS - 1024 ultrasonic power: 1200 W,
DYS - 1030 ultrasonic power: 1500 W,
DYS - 1036 ultrasonic power: 1800 W,
DYS - 1048 ultrasonic power is: 2400 W. Single tank type ultrasonic cleaner adopts the split type structure, effective to eliminate the various problems caused by the damp environment cleaning, ultrasonic wire is 2.5 M long, our company can be customized according to customer requirements for length, due to the ultrasonic generator output for belt frequency pulse current, so ultrasonic cleaning machine wire length can't more than 15 M, beyond the length of the cleaning efficiency will be discounted. If more than 15 m can use my company with the function of remote control of ultrasonic generator.
6, ultrasonic cleaning trough effective size:
DYS - 1012 size is: 370 * 280 * 330 mm,
DYS - 1018 size is: 460 * 330 * 400 mm,
DYS - 1024 size is: 600 * 400 * 400 mm,
DYS - 1030 size is: 600 * 500 * 400 mm,
DYS - 1036 size is: 650 * 550 * 440 mm,
DYS - 1048 size is: 800 * 600 * 600 mm, my company all other specifications can also be a order.
Product features:
1, The machine is made up of 304# stainless steel, durable, easy to operate, Connect the power can be used.
2, The machine uses 28KHz Ultrasonic generator, effectively reduce the noise and improve the cleaning efficiency.
3, cleaning time can be adjusted within 99 minutes, to clean the standard.
4, the machine is equipped with separate drainage ball valve manual.
5, Ultrasonic generator features: the use of new dual frequency circuit has: Power continuously adjustable, dual frequency sweep frequency tracking, digital display, digital display, digital display and digital display and timing cleaning functions. (according to the cleaning of different parts, to achieve the standard, uniform cleaning effect)
6, heating function: equipped with thermostatic temperature control device, to achieve the design temperature automatically stop heating, lower than the set temperature, automatic heating.
Technical parameters:
Model：DYS1030
Ultrasonic power：1500W
Ultrasonic Frequency: The default 28KHz (25KHz/40KHz/60KHz/68KHz delivery also can be customized according to the requirement)
Tank Capacity:120L
Timer:1~99min Digital display times.
Heating power: 5000W (heating power can be increased or reduced according to the requirement.
Heating control mode: mechanical temperature control temperature range 30℃ to 110℃.
The Tank size: 600 x 500 x 400 mm（L x W x H）
The shape size: 720 x 640 x 695 mm（L x W x H）
The supply voltage: AC 220V，50Hz
The Ultrasonic cleaner Random collocation cover.
There is drainage valve.
The basket can be optional.
Application range:
Applicable to electroplating products, stainless steel products, brass products, aluminum products, auto and motorcycle parts, metal stamping parts, electronic appliance parts, oil pump and nozzle, compressor parts, semiconductor wafer, electroplating industry before processing and chemical fiber industry of spinneret and filter cleaning. With special lotion effect is better. Can effectively remove the plating products, stainless steel products, brass products, aluminum products surface wax, the effect is quite good.
The cleaning of applicable in the manufacture of hardware, electronic circuit board, jewelry, watch parts, glasses, nail tattoo equipment, medical (surgical equipment cleaning and disinfection), chemical, automobile repair industry, biochemical medicine research institute and school laboratory (degassing, defoaming, emulsifying, mixing replacement cells crushed), etc.
>>
