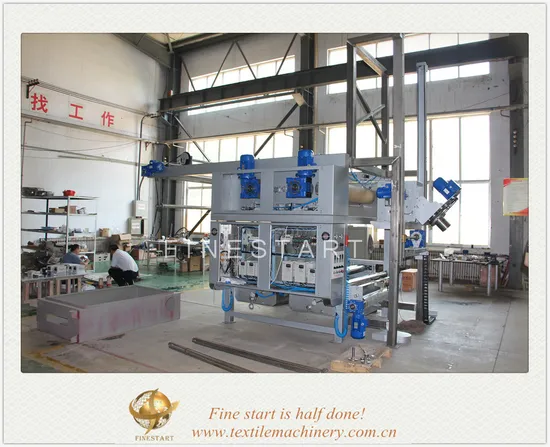

FSRZ2400 series machine is used for impregnating soften agent and hydro-extractor process of the tubular fabrics, it can be substitute for centrifugal machine and wet expander. It is high efficient and easy to operate.
| No | Main Parts | Explanation |
| | | |
| 1 | Turn Table | Turn table is driven by motor, it can turn clockwise or anticlockwise according to untwist needing. |
| 2 | Detwister | Detwister will auto detwist the roped fabric and infeed smoothly |
| 3 | Ring Guider | Fabrics guide rings position (fabrics working breadth) is adjusted through lead screw, lead screw is driven by motor |
| 4 | Trough | Make it by 316L stainless steel,anti-corrosion from the chemical liquid |
| 5 | Auto Blower | After detwisting,the blower will inject air into fabric,it will be favor to utmost impregnate the chemical agent on fabric |
| 6 | Squeezer | Squeezer consists of 2 sets rubber roller and 2 sets Pneumatics cylinder. |
| The pressure of the squeezing roller is adjusted by two sets reduce valve. |
| The water squeezing device and softener expression device are driven by one motor separately, |
| the two motors are controlled by inverter. |
| 7 | Tension Regulator | Set with a regulation-resistance to adjust tension between squeezing roller and delivery device. |
| |
| Energy Consumption |
| No | Item | Consumption |
| 1 | Driving System | 11.45KW |
| 2 | Steam | 50-100kg/h |
| | | |
| Loading |
| 1 | 1*20GP |
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
