Bh-914-400 Long Span Roofing Sheet Machine

Product Description

Product Description
Bohai Arch roof Roll Forming Machine 914-400
Dimension unit (mm):
Yingkou Bohai Colored Steel Sheet Forming equipment Co., Ltd. is an experienced Arch Sheet Roll Forming Machine manufacturer in Yingkou city, Liaoning province, China. We have more than 20 years of experience and have the capacity to produce other roll forming machines including BH-span Arch Sheet Project, SM-40 Spiral Steel Silo Forming Machine s, roof sheet forming machines, etc. Our products are exported to Mexico, UAE, Romania, Ukraine, Angola and many more countries. Our more than 20 years of experience in this industry have given us the necessary knowledge required for the production of durable and productive BH-span Arch Sheet forming machines at low prices. Please contact us for more information!

Main Technical Specifications 914-400
Size	8900mm×2230mm×2300mm
Feeding width	914mm
Proper span	≤40m
Total weight	About 10000kg
Effective width	400mm
Sheet operating factor	43.8%
Total motor power	17.9kw
Bending power	3.0kw+1.1kw×2
Sewing power	2.2kw
Cutting power	3.0kw
Forming power	7.5kw
Controlling system	PLC and manual
Cutting mode	Mechanical cutting
Depth of the groove	210mm
Material of roller shaft	45# steel, galvanized
Material of rollers	45# steel, quenched with hard chrome

Characteristics The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement. Our helping hand wheel and the counter are used in adjustment of the bending of arch sheet, which makes the operation simpler. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.
Related Production

Model	Feeding Width	Effective Width	Thickness Coil	Largest Span
BH-600-300	600mm	300mm	0.5-1.6mm	30
BH-600-305	600mm	305mm	0.5-1.6mm	28
BH-914-400	914mm	400mm	0.5-1.6mm	40
BH-914-610	914mm	610mm	0.5-1.6mm	38
BH-914-650	914mm	650mm	0.5-1.6mm	26
BH-914-700	914mm	700mm	0.5-1.6mm	22
BH-914-750	914mm	750mm	0.5-1.6mm	14
BH-1000-610	1000mm	610mm	0.5-1.6mm	42
BH-1000-680	1000mm	680mm	0.5-1.6mm	38
BH-1000-700	1000mm	700mm	0.5-1.6mm	30
BH-1000-750	1000mm	750mm	0.5-1.6mm	24
BH-1000-800	1000mm	800mm	0.5-1.6mm	18
BH-1200-800	1200mm	800mm	0.5-1.6mm	40
BH-1220-800	1220mm	800mm	0.5-1.6mm	42
BH-1250-800	1250mm	800mm	0.5-1.6mm	45

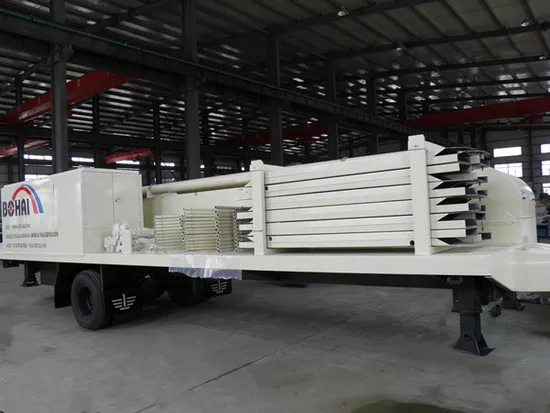

Machine Photo
Machine Detail Photo
Project

Company Profile
Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Packaging & Shipping

Certifications

Photos with our customers
FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.
Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!
Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.
Q: What is your service?
A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.

---
