High Speed Sectional Warping Machine for Water Jet Loom, Air Jet Loom and Rapier Looms

Product Description

Product Description
JLH910 Cotton Fabric Making Machine Industrial Weaving Machines

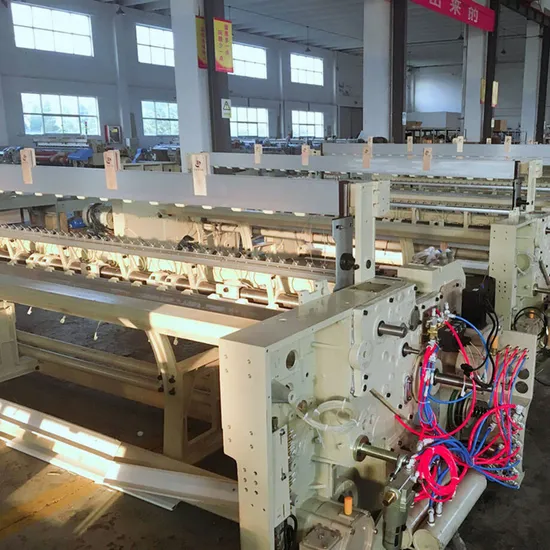

JLH910 economic type air jet loom
JLH910is economic type air jet loom ,design based on Tsudakoma ZAX N .
Advantage :low cost,low investment

Weaving range:mid-low density cotton fabric,polyster fabric

Respective fabric:100% cotton 60s x 60s 90x88(warp x weft density/inch)
(fabric width:178cm)
Rayon 45s x 45s 100x80 178cm

Standard configuration:
Electronic let off and take up,plain shedding,double nozzle electronic feeder
Optional width:190 210 230 280

Suitable raw material:combed yarn 7s-80s,carding yarn,polyster yarn
Respective machine:
Reed width:190cm
Shedding:Plain
Electronic feeder:2 nozzle
Single warp beam
Electronic let off and take up ELO& ETU
Motor:1.8KW
Air consumption:0.7---0.8(different fabric,different air consumption)
R.P.M 650-700
Customer visits
1.With CE certificate and ISO9001 certificate
2.Good after sales service
3.Exported to India,Pakistan,Russia,Turkey
4.20 years manufacturing experience
5.we have our own R&D team,engineers are available oversea

---
