US$9,800.00-75,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Full-Automatic
Product Name
Comprehensive Crusher
Keywords 2
Wood Branch Shredder
Keywords 3
Wood Grinding Machine
Keywords 4
Wood Chipper Machines
Keywords 5
Chipper Shredder Crusher Grinder
Keywords 7
Wood Crusher Shredder Machine
Keywords 8
Wood Log Crusher
Keywords 9
Wood Tree Branch Crusher
Keywords 10
Wood Crusher Machines
Keywords 11
Wood Chip Machine
Keywords 12
Wood Log Branch Crusher Machine
Transport Package
Container
Specification
2250*1400*1850mm
Production Capacity
10 Sets Per Month
Product Description
Multi-function Sawdust Wood Crusher Powerful Tree Shredder Machines Woodworking Machinery
Product Description
Wood Crusher Machine
Wood composite crusher is mainly used for building template,wasted wood pallet,Tree bark,Slabs,off cuts,branches,straw and so on. --Including Host,chain plate,feeding and outlet system,intelligent electrical control.--Chain Plate Feeding conveyor feeding more freely, no need change the belt all the time.--Reasonable structure,simple operation,high automatic level,high safety coefficient and production capacity,less manpower,easy maintenance.--It is the ideal equipment for biomass power generation enterprises.
Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stonesWood Stumps/Roots,Rail Sleepers,Straw,cotton stalk.
Specification
Model
| AG800-500
| AG1300-600
| AG1600-600
|
Feeding Inlet
| 800*500MM
| 1250*600MM
| 1600*600MM
|
Blade Roller Diameter
| 850MM
| 850MM
| 850MM
|
Blade Roller Speed
| 850RPM
| 850RPM
| 850RPM
|
Capacity
| 8-10Tons/Hour
| 12-15Tons/Hour
| 25Tons/Hour
|
YG8 Hammer Blade Quantity
| 16
| 20
| 28
|
Knife Blade Quantity
| 2Group/4Pcs
| 2Group/4Pcs
| 2Group/4Pcs
|
Max.Processing Wood Diameter
| 300MM
| 450MM
| 450MM
|
Motor Power
| 110KW
| 160KW
| 250KW
|
Wood Chipper Size
| 20-40CM
| 20-40CM
| 20-40CM
|
Working Life of the Hammer Blades
| 4000T-5000T
| 4000T-6000T
| 4000T-6000T
|
Electric Model Wood Crusher
Electric Model Wood Shredder With Tires

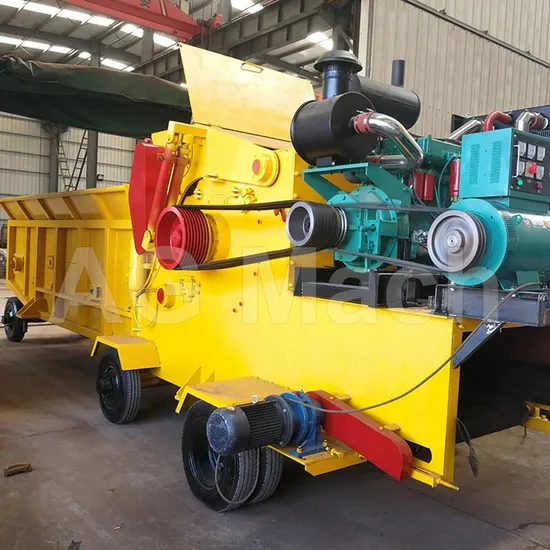

Mobile / Diesel Model Wood Shredder
Detailed Photos
Hammer Type Roller
the hammer type roller is suitable for crushing the building template, wasted wood pallet, sugarcane leaves, tree bark.
Screen Mesh:
The size of the wood chips is controlled by the size of the mesh holes.
Generally, the size of the shredded wood chips is 20-40mm,
We can customize it according to customer's requirements.
Knife / Blade
The knive is mainly used for crushing big timber logs, tree branch, wood slabs, waste pallets etc.
The knives needs to be changed if the output capacity significantly decrease in production
Chain Plate Feeding Conveyor
It is the slot chain plate feeding conveyor for our wood chipper/shredder, which is more durable and efficient than ordinary belt conveyor, so that prolongs the service life of the shredding machine.
Final Products
Features
Raw of Material wood chipper :
Various wood logs, waste wood pallet, wood slabs, wood blocks, forest waste, agro waste, bamboo straw, corn stalks etc.
Main Features of wood chipper machine
(1) New design blade rotor,blades are easy to replaceable.
(2). Cover of crushing chamber could be opened by hydraulic,ease for maintenance and changeble blades.
(3). Screen mesh size is customized for different requirements on size of end product. Hydraulic buffer system ensures smooth operation
(4). Reverse feeding device,belt conveyor can be reversed positively.This device can protect machine,when large wood is encountered
(5). Higher capacity than the traditional type,larger feeding size.
