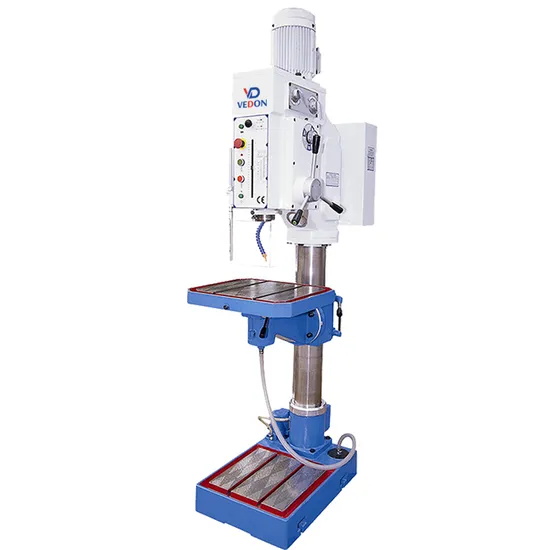

Round Column Type Meet Vertical Drilling Machine Specification Z5035A Drilling Machine

Product Description

Product Description
All main parts are made with quality cast iron.
Double speed motor, 12steps gear shift.
Unload tool device and coolant.
Strength spindle, large diameter column.
The model with A is electromagnetism cluth transmission feed, with B is mechanical feed.
Product Parameters

Item	Vertial Drilling Machine
Model	Z5035A
Max. drilling diameter	35mm
Max. tapping diameter	M20
Distance from spindle axis to generating line of column	330mm
Distance from spindle nose to workable surface	610mm
Distance from spindle nose to base plate surface	1150mm
Spindle travel	150mm
Max. adjusment of workable and table rest	540mm
Swivel of table and table rest	+/-45°
Spindle taper	MT4
Range of spindle feeds	70-2600rpm
Number of spindle feeds	12
Spindle feed range	0.1,0.2,0.3mm/r
Column diameter	140mm
Effective working area of table (L*W)	424*424mm
Effective working area of base plate (L*W)	420*380mm
Dimension of T-slot of table and base plate	2-14mm, 2-16mm
Main motor power	1.5/2.2kw
Package size	700*1150*2150mm
Weight	670/730kg

Detailed Photos
Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd. is a comprehensive industrial and trade enterprise in China who is specialized in metal cutting machinery and tools,coming with self import and export rights.Shandong Vedon Intelligent Equipment Co., Ltd. supply a wide range of products and service to its global customers, including vertical machining center, milling machine, radial drilling machine, vertical drilling machine, lathe, CNC lathe, HSS&TCT annular cutter, magnetic drill machine, band saw machine and non-sparking tools etc... They are widely sold to more than 50 countries and areas in Europe,America, and Aisa, relying on the reliable product quality, reasonable price and good after-sales service system.Shandong Vedon Intelligent Equipment Co., Ltd. follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients.Here we sincerely hope to cooperate with you and create a bright future.
After Sales Service
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color? A: Yes, As long as the order quantity reach to the MOQ.Q2. What's your trade terms? A: FOB, CIF, DAP or other terms are acceptable.Q3. Could I order trail small order? A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.Q4. What points need to be confirmed before placing the order? A: Voltage, frequency, plug type trade term and have shipping agent or not.Q5. What is your terms of payment ? A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
