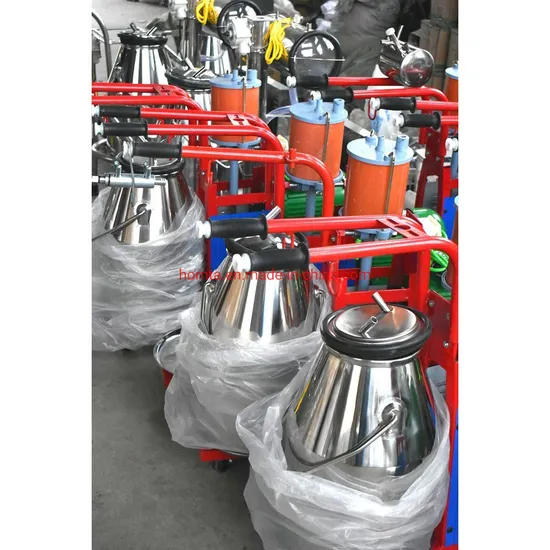

Piston Single/Double Buckets Cow Milking Machine

Product Description

Electric vacuum pump Double barrel mobile milking machine
Main performance and technical parameters of vacuum pump single drum mobile milking machine.
According to the need number of barrels,Vacuum Pump Advanced Mobile Milking Machine can be divided into the Single-barrel Type (Type YZI) and Double-barrels Type ( Type YZII) .There are the vacuum pump, electric motor, pulsator, milk tube, milking cup group and leglen be installed on one machine. It can work flexibly, without space constraints, be convenient and flexible. It is suitable for all kinds of dairy farms and dairy raising by farmer households.
Based on the original model and according to the practical needs from the customers, our company developed this product after the research and design by experts, its features are unique design, easy operation, easy maintenance, vacuum stability, low noise, stability pulsating frequency, small vacuum fluctuations, and soft milking, Alternate milking front and back can massage and protect the udder, thus achieving the ideal effect of increasing production. Only one milker is needed to operate and maintain the machine.
Note: Customers can order the number of buckets and nipples.
Note: vacuum pump should add special vacuum pump oil.
vacuum pump should add special vacuum pump oil.
Note: vacuum pump should add special vacuum pump oil.

Item Model	Type YH-1	Type YH-11
Operating Vacuum Degree	0.04-0.05MPa( adjustable)	0.04-0.05MPa( adjustable)
Pulsation Times	60-80 times per minute	60-80 times per minute
Pulsation Rate	40/60	40/60
Power Fitted	0.75KW	0.75KW--1.1KW
Gasoline Engine Standard KW Power and Rotating Speed	1.3/1.5/2.5/3.1/3.8/3600	1.3/1.5/2.5/3.1/3.8/3600
Voltage	110V,220V,240V or 380V	110V,220V,240V or 380V
Motor Speed	1440 rpm per minute	1440 rpm per minute
The Number of Milking Nanny Goat Per Hour	20-30 goats per hour	40-60 goats per hour
Vacuum Pump Capacity(L/min)	200/250	200/250

Tho Number of Stainless Steel Milk Bucket	One (capacity of 25kg)	Two (each of capacity of 25kg)
Employees Needed When Milking	one	one
The Number of Milking Cup Group	one set	two sets

Our customer Service:
1.Reply you inquiry in 24Hrs.
2.Feedback of complaint in 24Hrs.
3.OEM/ODM are welcomed.
4.Short delivery time.
5. We can process products according to customers' drawing or requirement.

---
