Cassman 2000L 3000L 5000L Commercial Craft Beer Industrial Brewery Equipment

Product Description

Cassman 2000L 3000L 5000L Commercial Craft Beer Industrial Brewery Equipment

Name	Complete microbrewery craft beer brewery equipment configuration
Grain Miller	Miller with double roller
Brewhouse System	Including Mash Tun, Lauter tun, Kettle Tun, and Whirlpool tank; Heating way: Electricity heating, direct fire heating or steam heating; With grain rake, false bottom, spray ball, etc;
Fermenter	Fermentation tanks (the capacity is based on the brew batch; the quantity is based on the production); Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe;8.Spending valve
Glycol cooling unit	Glycol water tank, Coldwater tank, Refrigeration chiller Machine; Sanitary centrifugal pump for glycol water and cold water recycle among tanks and heat exchanger; All pipes, fitting, insulation materials are included.
CIP cart	Sterilization Tank, Caustic tank, Hot water tank Thickness is 2mm; Weld slinging band; Valves, accessories supporting; All welding is argon protection single-sided, double-sided forming; Function: Clean in place for tanks
Control panel	PID semi-auto controller, PLC auto controller, a brand is Siemens, LG for optional. Electric components have CE Certificate. Offer floor type and wall hanging assembling. Control all the tank's temperature, motor, and pump's show on/off.
Filter Unit	Kieselguhr filter, Membrane filter; Filtered beer tanks/bright beer tank; In the restaurant, beers are always served as craft beer without filtration.
Filling system	Keg filling and washing Machine; Bottle capping and filling Machine. Keg filling and washing Machine; Bottle capping and filling Machine.
Other facilities	steam boiler, steam pipe, all the pipes for the brewhouse unit and glycol cooling unit, and so on.

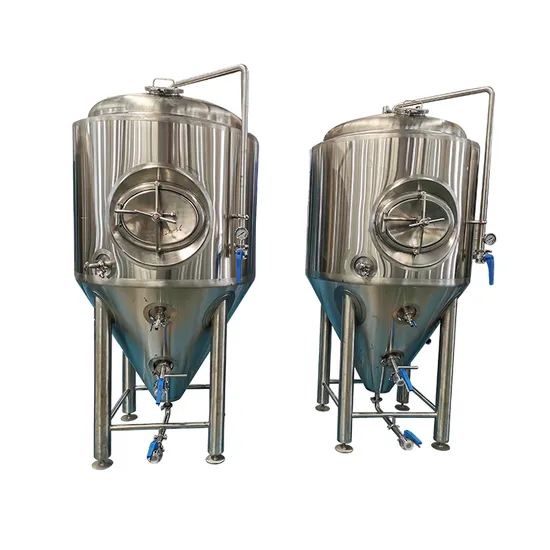

Fermenter&BBT System:
-Capacity:2000L,3000L,5000L, +25% Head space
-Interior shell thickness 3-6mm, Exterior shell=2mm, SUS 304 material
-100% TIG welding with pure argon gas shield
-Interior finish:Pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-Level tube & carbonation stone for chocie
-60°conical bottom for Fermener, Sanitary side manway (top for option).
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-24V solenoid valve.Dial Thermometer.Thermowell sensor.
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads, Lifting ear, Ladder Hooks.
Brew House System :
-Two-Four vessles or combined system.
-Capacity 2000L, 3000L, 5000L.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
-External grant, hops back, heat exchanger.Wort oxygenation system, working platform etc.
-All the necessary pipelines and pumps.
Cassman Factory
Cassman is the leading Microbrewery equipment supplier in China, our service include the brewery design, equipment manufacture, Installation at site and brewing technology transfer.
We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.
Established in 2010, Cassman brewing equipment has been exported to more than 20 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark etc.
Project Reference
Certification

---
